原创 14. ESP32开发之ST7789显示

typedef struct {
    union {
      int mosi_io_num;    //spi的mosi接口，不用赋值-1
      int data0_io_num;   ///< GPIO pin for spi data0 signal in quad/octal mode, or -1 if not used.
    };
    union {
      int miso_io_num;    ///< GPIO pin for Master In Slave Out (=spi_q) signal, or -1 if not used.
      int data1_io_num;   ///< GPIO pin for spi data1 signal in quad/octal mode, or -1 if not used.
    };
    int sclk_io_num;      ///< GPIO pin for SPI Clock signal, or -1 if not used.
    union {
      int quadwp_io_num;  ///< GPIO pin for WP (Write Protect) signal, or -1 if not used.
      int data2_io_num;   ///< GPIO pin for spi data2 signal in quad/octal mode, or -1 if not used.
    };
    union {
      int quadhd_io_num;  ///< GPIO pin for HD (Hold) signal, or -1 if not used.
      int data3_io_num;   ///< GPIO pin for spi data3 signal in quad/octal mode, or -1 if not used.
    };
    int data4_io_num;     ///< GPIO pin for spi data4 signal in octal mode, or -1 if not used.
    int data5_io_num;     ///< GPIO pin for spi data5 signal in octal mode, or -1 if not used.
    int data6_io_num;     ///< GPIO pin for spi data6 signal in octal mode, or -1 if not used.
    int data7_io_num;     ///< GPIO pin for spi data7 signal in octal mode, or -1 if not used.
    int max_transfer_sz;  ///< Maximum transfer size, in bytes. Defaults to 4092 if 0 when DMA enabled, or to `SOC_SPI_MAXIMUM_BUFFER_SIZE` if DMA is disabled.
    uint32_t flags;       ///< Abilities of bus to be checked by the driver. Or-ed value of ``SPICOMMON_BUSFLAG_*`` flags.
    esp_intr_cpu_affinity_t  isr_cpu_id;    ///< Select cpu core to register SPI ISR.
    int intr_flags;       /**< Interrupt flag for the bus to set the priority, and IRAM attribute, see
                           *  ``esp_intr_alloc.h``. Note that the EDGE, INTRDISABLED attribute are ignored
                           *  by the driver. Note that if ESP_INTR_FLAG_IRAM is set, ALL the callbacks of
                           *  the driver, and their callee functions, should be put in the IRAM.
                           */
} spi_bus_config_t;

esp_err_t spi_bus_initialize(
    spi_host_device_t host_id,    //使用哪个主机SPI，有SPI0_HOST、SPI1_HOST、SP2_HOST
    const spi_bus_config_t *bus_config, //使用spi_bus_config_t创建的结构体
    spi_dma_chan_t dma_chan  //dma通道，设置SPI_DMA_DISABLED则不开启
)

typedef struct {
    int cs_gpio_num; /*!< GPIO used for CS line */
    int dc_gpio_num; /*!< GPIO used to select the D/C line, set this to -1 if the D/C line is not used */
    int spi_mode;    /*!< Traditional SPI mode (0~3) */
    unsigned int pclk_hz;    /*!< Frequency of pixel clock */
    size_t trans_queue_depth; /*!< Size of internal transaction queue */
    esp_lcd_panel_io_color_trans_done_cb_t on_color_trans_done; /*!< Callback invoked when color data transfer has finished */
    void *user_ctx;    /*!< User private data, passed directly to on_color_trans_done's user_ctx */
    int lcd_cmd_bits;   /*!< Bit-width of LCD command */
    int lcd_param_bits; /*!< Bit-width of LCD parameter */
    struct {
        unsigned int dc_low_on_data: 1;  /*!< If this flag is enabled, DC line = 0 means transfer data, DC line = 1 means transfer command; vice versa */
        unsigned int octal_mode: 1;      /*!< transmit with octal mode (8 data lines), this mode is used to simulate Intel 8080 timing */
        unsigned int quad_mode: 1;       /*!< transmit with quad mode (4 data lines), this mode is useful when transmitting LCD parameters (Only use one line for command) */
        unsigned int sio_mode: 1; /*!< Read and write through a single data line (MOSI) */
        unsigned int lsb_first: 1;       /*!< transmit LSB bit first */
        unsigned int cs_high_active: 1;  /*!< CS line is high active */
    } flags; /*!< Extra flags to fine-tune the SPI device */
} esp_lcd_panel_io_spi_config_t;

esp_err_t esp_lcd_new_panel_io_spi(
    esp_lcd_spi_bus_handle_t bus,   //SPI总线
    const esp_lcd_panel_io_spi_config_t *io_config,//填充完成的esp_lcd_panel_io_spi_config_t结构体变量
    esp_lcd_panel_io_handle_t *ret_io //返回的LCD SPI面板句柄
)
//在使用这个函数之前需先创建个esp_lcd_panel_io_spi_config_t结构体变量，比如esp_lcd_panel_io_handle_t io_handle = NULL;

typedef struct {
    int reset_gpio_num; /*!< GPIO used to reset the LCD panel, set to -1 if it's not used */
    union {
        lcd_rgb_element_order_t color_space;   /*!< @deprecated Set RGB color space, please use rgb_ele_order instead */
        lcd_rgb_element_order_t rgb_endian;    /*!< @deprecated Set RGB data endian, please use rgb_ele_order instead */
        lcd_rgb_element_order_t rgb_ele_order; /*!< Set RGB element order, RGB or BGR */
    };
    lcd_rgb_data_endian_t data_endian;         /*!< Set the data endian for color data larger than 1 byte */
    unsigned int bits_per_pixel;       /*!< Color depth, in bpp */
    struct {
        unsigned int reset_active_high: 1; /*!< Setting this if the panel reset is high level active */
    } flags;                               /*!< LCD panel config flags */
    void *vendor_config; /*!< vendor specific configuration, optional, left as NULL if not used */
} esp_lcd_panel_dev_config_t;

//其实就是将实现的st7789相关函数注册到LCD面板这个大的虚拟对象中，这是C语言的面向对象编程
esp_err_t
esp_lcd_new_panel_st7789(const esp_lcd_panel_io_handle_t io,   //创建过的lcd面板io句柄
                         const esp_lcd_panel_dev_config_t *panel_dev_config,//创建过的LCD面板驱动句柄
                         esp_lcd_panel_handle_t *ret_panel  //返回一个LCD面板句柄
                        )

//控制LCD复位
esp_err_t esp_lcd_panel_reset(esp_lcd_panel_handle_t panel)
//初始化LCD
esp_err_t esp_lcd_panel_init(esp_lcd_panel_handle_t panel)
//开关屏幕
 esp_err_t esp_lcd_panel_disp_on_off(esp_lcd_panel_handle_t panel, bool on_off)
//控制屏幕是否反色，白天模式暗黑模式的控制
esp_err_t esp_lcd_panel_invert_color(esp_lcd_panel_handle_t panel, bool invert_color_data)

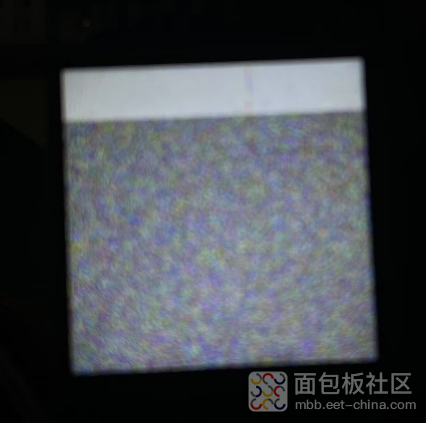

idf.py create-manifest

idf.py reconfigure

## IDF Component Manager Manifest File
dependencies:
## Required IDF version
idf:
version: ">=4.1.0"
lvgl/lvgl: "~9.2.0" //这是我需要添加的LVGL库，版本时9.2.0

lv_init();

lv_display_t * lv_display_create(int32_t hor_res, int32_t ver_res)//参数为实际屏幕的分辨率

void lv_display_set_user_data(lv_display_t * disp, void * user_data)

void lv_display_set_color_format(lv_display_t * disp, lv_color_format_t color_format)

void lv_display_set_rotation(lv_display_t * disp, lv_display_rotation_t rotation)

void lv_display_set_flush_cb(lv_display_t * disp, lv_display_flush_cb_t flush_cb)
//回调函数如果设置为NULL，则使用默认函数

static void example_increase_lvgl_tick(void *arg)
{
/* Tell LVGL how many milliseconds has elapsed */
lv_tick_inc(2); //这里是2ms，建议跟定时器定时时间同步
}

const esp_timer_create_args_t lvgl_tick_timer_args = {
.callback = &example_increase_lvgl_tick, //定时事件，定时通知lvgl已经多久了
.name = "lvgl_tick"
};
esp_timer_handle_t lvgl_tick_timer = NULL;
ESP_ERROR_CHECK(esp_timer_create(&lvgl_tick_timer_args, &lvgl_tick_timer));
ESP_ERROR_CHECK(esp_timer_start_periodic(lvgl_tick_timer, 2 * 1000)); //2ms触发一次事件

const esp_lcd_panel_io_callbacks_t cbs = {
        .on_color_trans_done = example_notify_lvgl_flush_ready,
    };
    /* Register done callback */
    ESP_ERROR_CHECK(esp_lcd_panel_io_register_event_callbacks(io_handle, &cbs, display));
//回调函数中调用lvgl的刷新就绪函数，通知LVGL就绪状态，让lvgl进行下一步刷新
LV_ATTRIBUTE_FLUSH_READYvoid lv_display_flush_ready(lv_display_t * disp)

//通过lv_timer_handler(void)持续更新lvgl，这是LVGL的心脏
static void example_lvgl_port_task(void *arg)
{
ESP_LOGI(TAG, "Starting LVGL task");
uint32_t time_till_next_ms = 0;
while (1) {
_lock_acquire(&lvgl_api_lock);
time_till_next_ms = lv_timer_handler();
_lock_release(&lvgl_api_lock);
// in case of triggering a task watch dog time out
time_till_next_ms = MAX(time_till_next_ms, EXAMPLE_LVGL_TASK_MIN_DELAY_MS);
// in case of lvgl display not ready yet
time_till_next_ms = MIN(time_till_next_ms, EXAMPLE_LVGL_TASK_MAX_DELAY_MS);
usleep(1000 * time_till_next_ms);
}
}
xTaskCreatePinnedToCore(example_lvgl_port_task, "LVGL", EXAMPLE_LVGL_TASK_STACK_SIZE, NULL, EXAMPLE_LVGL_TASK_PRIORITY, NULL,1);

lv_obj_t *scr = lv_display_get_screen_active(disp);
lv_obj_t *label1= lv_label_create(scr);
lv_label_set_text(label1, "Hello\nworld");
lv_obj_align(label1, LV_ALIGN_CENTER,0,0);

/**
 * Copyright (C) 2024-2034 HalfMoon2.
 * All rights reserved.
 *
 * @file 	 Filename without the absolute path
 * @brief 	 Brief description
 * @author 	 HalfMoon2
 * @date 	 2025-06-23
 * @version	 v0.1
 *
 * @revision history:
 * 	 2025-06-23 - Initial version.
 */
#include <stdio.h>
#include <unistd.h>
#include <sys/lock.h>
#include <sys/param.h>
#include <freertos/FreeRTOS.h>
#include <freertos/task.h>
#include <esp_log.h>
#include <driver/gpio.h>
#include <driver/spi_master.h>
#include "driver/spi_common.h"
#include "esp_timer.h"
#include "esp_lcd_panel_io.h"
#include "esp_lcd_panel_vendor.h"
#include "esp_lcd_panel_ops.h"
#include "esp_lcd_panel_commands.h"
#include "esp_dma_utils.h"
#include "lvgl.h"
#include "esp_task_wdt.h"

static const char *TAG = "ST7789";

//LCD使用的SPI接口
#define LCD_SPI SPI2_HOST

//SPI相关引脚定义
#define SPI_LCD_MOSI GPIO_NUM_12
#define SPI_LCD_MISO GPIO_NUM_18
#define SPI_LCD_SCLK GPIO_NUM_11
#define SPI_LCD_CS	 GPIO_NUM_15
#define SPI_LCD_DC	 GPIO_NUM_17
#define SPI_LCD_RST	 GPIO_NUM_21
#define SPI_LCD_BL	 GPIO_NUM_26

//LCD显示屏的大小
#define LCD_SIZE_WIDTH 240
#define LCD_SIZE_HIGHT 240

#define EXAMPLE_LVGL_TASK_MIN_DELAY_MS 1000/CONFIG_FREERTOS_HZ
#define EXAMPLE_LVGL_TASK_MAX_DELAY_MS 500
#define EXAMPLE_LVGL_TASK_STACK_SIZE   (4 * 1024)
#define EXAMPLE_LVGL_TASK_PRIORITY     2

// LVGL library is not thread-safe, this example will call LVGL APIs from different tasks, so use a mutex to protect it
static _lock_t lvgl_api_lock;
static lv_obj_t * btn;
static esp_lcd_panel_io_handle_t io_handle = NULL;

static void set_angle(void * obj, int32_t v)
{
	ESP_LOGI(TAG, "Starting set_angle");
    lv_arc_set_value(obj, v);
}

static void anim_x_cb(void *var, int32_t v) {
	lv_obj_set_x(var, v);
}

void example_lvgl_demo_ui(lv_display_t *disp)
{
    lv_obj_t * scr= lv_display_get_screen_active(disp);
	lv_obj_t *label1= lv_label_create(scr);
    lv_label_set_text(label1, "Hello\nworld");
	lv_obj_align(label1, LV_ALIGN_CENTER,0,0);

#if 1
    btn = lv_button_create(scr);
    lv_obj_t * lbl = lv_label_create(btn);
    lv_label_set_text_static(lbl, LV_SYMBOL_REFRESH" ROTATE");
    lv_obj_align(btn, LV_ALIGN_BOTTOM_MID,0, 0);
    /*Button event*/
 //   lv_obj_add_event_cb(btn, btn_cb, LV_EVENT_CLICKED, disp);
#endif
    /*Create an Arc*/
    lv_obj_t * arc = lv_arc_create(scr);
    lv_arc_set_rotation(arc, 270);
    lv_arc_set_bg_angles(arc, 0, 360);
    lv_obj_remove_style(arc, NULL, LV_PART_KNOB);   /*Be sure the knob is not displayed*/
    lv_obj_remove_flag(arc, LV_OBJ_FLAG_CLICKABLE);  /*To not allow adjusting by click*/
    lv_obj_center(arc);
#if 1
    lv_anim_t a;
    lv_anim_init(&a);
    lv_anim_set_var(&a, arc);
    lv_anim_set_exec_cb(&a, set_angle);
    lv_anim_set_duration(&a, 1000);
    lv_anim_set_repeat_count(&a, LV_ANIM_REPEAT_INFINITE);    /*Just for the demo*/
    lv_anim_set_repeat_delay(&a, 500);
    lv_anim_set_values(&a, 0, 100);
    lv_anim_start(&a);
#endif
}

static bool example_notify_lvgl_flush_ready(esp_lcd_panel_io_handle_t panel_io, esp_lcd_panel_io_event_data_t *edata, void *user_ctx)
{
    lv_display_t *disp = (lv_display_t *)user_ctx;
    lv_display_flush_ready(disp);
    return false;
}

static void example_lvgl_port_task(void *arg)
{
    ESP_LOGI(TAG, "Starting LVGL task");
    uint32_t time_till_next_ms = 0;
    while (1) {
        _lock_acquire(&lvgl_api_lock);
        time_till_next_ms = lv_timer_handler();
        _lock_release(&lvgl_api_lock);
        // in case of triggering a task watch dog time out
        time_till_next_ms = MAX(time_till_next_ms, EXAMPLE_LVGL_TASK_MIN_DELAY_MS);
        // in case of lvgl display not ready yet
        time_till_next_ms = MIN(time_till_next_ms, EXAMPLE_LVGL_TASK_MAX_DELAY_MS);
        usleep(1000 * time_till_next_ms);
    }
}

/* Rotate display and touch, when rotated screen in LVGL. Called when driver parameters are updated. */
static void example_lvgl_port_update_callback(lv_display_t *disp)
{
    esp_lcd_panel_handle_t panel_handle = lv_display_get_user_data(disp);
    lv_display_rotation_t rotation = lv_display_get_rotation(disp);

    switch (rotation) {
    case LV_DISPLAY_ROTATION_0:
        // Rotate LCD display
        esp_lcd_panel_swap_xy(panel_handle, false);
        esp_lcd_panel_mirror(panel_handle, false, false);
        break;
    case LV_DISPLAY_ROTATION_90:
        // Rotate LCD display
        esp_lcd_panel_swap_xy(panel_handle, true);
        esp_lcd_panel_mirror(panel_handle, true, true);
        break;
    case LV_DISPLAY_ROTATION_180:
        // Rotate LCD display
        esp_lcd_panel_swap_xy(panel_handle, false);
        esp_lcd_panel_mirror(panel_handle, true, true);
        break;
    case LV_DISPLAY_ROTATION_270:
        // Rotate LCD display
        esp_lcd_panel_swap_xy(panel_handle, true);
        esp_lcd_panel_mirror(panel_handle, true, false);
        break;
    }
}

static void example_increase_lvgl_tick(void *arg)
{
    /* Tell LVGL how many milliseconds has elapsed */
    lv_tick_inc(2);
}

static void example_lvgl_flush_cb(lv_display_t *disp, const lv_area_t *area, uint8_t *px_map)
{
    example_lvgl_port_update_callback(disp);
    esp_lcd_panel_handle_t panel_handle = lv_display_get_user_data(disp);
    int offsetx1 = area->x1;
    int offsetx2 = area->x2;
    int offsety1 = area->y1;
    int offsety2 = area->y2;
    // because SPI LCD is big-endian, we need to swap the RGB bytes order
    lv_draw_sw_rgb565_swap(px_map, (offsetx2 + 1 - offsetx1) * (offsety2 + 1 - offsety1));
    // copy a buffer's content to a specific area of the display
    esp_lcd_panel_draw_bitmap(panel_handle, offsetx1, offsety1, offsetx2 + 1, offsety2 + 1, px_map);
}

static esp_lcd_panel_handle_t  st7789_init(void)
{
	//spi bus的相关配置
	spi_bus_config_t busconfig={
//		.flags=SPICOMMON_BUSFLAG_MASTER,  //设置SPI为主机模式
		.sclk_io_num=SPI_LCD_SCLK,
		.miso_io_num=SPI_LCD_MISO,
		.mosi_io_num=SPI_LCD_MOSI,
		.quadwp_io_num = -1,
    	.quadhd_io_num = -1,
		.max_transfer_sz=LCD_SIZE_HIGHT*20*sizeof(uint16_t)//单次最多可传输80行像素
	};
	ESP_ERROR_CHECK(spi_bus_initialize(LCD_SPI, &busconfig, SPI_DMA_CH_AUTO)); // 启用 DMA

	//创建SPI LCD句柄
	esp_lcd_panel_io_spi_config_t io_config = {
    	.dc_gpio_num = SPI_LCD_DC,
    	.cs_gpio_num = SPI_LCD_CS,
    	.pclk_hz = 40*1000*1000,
    	.lcd_cmd_bits = 8,
    	.lcd_param_bits = 8,
    	.spi_mode = 0,
    	.trans_queue_depth = 10
	};
	// 将 LCD 连接到 SPI 总线
	ESP_ERROR_CHECK(esp_lcd_new_panel_io_spi((esp_lcd_spi_bus_handle_t)LCD_SPI, &io_config, &io_handle));


	esp_lcd_panel_handle_t panel_handle = NULL;
	esp_lcd_panel_dev_config_t panel_config = {
   	 	.reset_gpio_num = SPI_LCD_RST,
    	.rgb_ele_order = LCD_RGB_ELEMENT_ORDER_BGR,
    	.bits_per_pixel = 16,
	};
	// 为 ST7789 创建 LCD 面板句柄，并指定 SPI IO 设备句柄
	ESP_ERROR_CHECK(esp_lcd_new_panel_st7789(io_handle, &panel_config, &panel_handle));

	ESP_ERROR_CHECK(esp_lcd_panel_reset(panel_handle));
    ESP_ERROR_CHECK(esp_lcd_panel_init(panel_handle));
	ESP_ERROR_CHECK(esp_lcd_panel_disp_on_off(panel_handle, true));
	esp_lcd_panel_invert_color(panel_handle,true);


	ESP_LOGI(TAG, "Initialize LVGL library");

	return panel_handle;
}

void app_main(void)
{
	esp_lcd_panel_handle_t panel_handle=st7789_init();
	lv_init();
	// create a lvgl display
    lv_display_t *display = lv_display_create(240, 240);


    // alloc draw buffers used by LVGL
    // it's recommended to choose the size of the draw buffer(s) to be at least 1/10 screen sized
    size_t draw_buffer_sz = LCD_SIZE_WIDTH * 24 * sizeof(lv_color16_t);

    void *buf1 = heap_caps_malloc(draw_buffer_sz, MALLOC_CAP_DMA);
    assert(buf1);
    void *buf2 = heap_caps_malloc(draw_buffer_sz, MALLOC_CAP_DMA);
    assert(buf2);
    // initialize LVGL draw buffers
    lv_display_set_buffers(display, buf1, buf2, draw_buffer_sz, LV_DISPLAY_RENDER_MODE_PARTIAL);
    // associate the mipi panel handle to the display
    lv_display_set_user_data(display, panel_handle);
    // set color depth
    lv_display_set_color_format(display, LV_COLOR_FORMAT_RGB565);
    // set the callback which can copy the rendered image to an area of the display

	lv_display_set_rotation(display,LV_DISPLAY_ROTATION_0);


    lv_display_set_flush_cb(display, example_lvgl_flush_cb);

    ESP_LOGI(TAG, "Install LVGL tick timer");
    // Tick interface for LVGL (using esp_timer to generate 2ms periodic event)
    const esp_timer_create_args_t lvgl_tick_timer_args = {
        .callback = &example_increase_lvgl_tick,
        .name = "lvgl_tick"
    };
    esp_timer_handle_t lvgl_tick_timer = NULL;
    ESP_ERROR_CHECK(esp_timer_create(&lvgl_tick_timer_args, &lvgl_tick_timer));
    ESP_ERROR_CHECK(esp_timer_start_periodic(lvgl_tick_timer, 2*1000));

	ESP_LOGI(TAG, "Register io panel event callback for LVGL flush ready notification");
    const esp_lcd_panel_io_callbacks_t cbs = {
        .on_color_trans_done = example_notify_lvgl_flush_ready,
    };
    /* Register done callback */
    ESP_ERROR_CHECK(esp_lcd_panel_io_register_event_callbacks(io_handle, &cbs, display));

	 ESP_LOGI(TAG, "Create LVGL task");
    xTaskCreatePinnedToCore(example_lvgl_port_task, "LVGL", EXAMPLE_LVGL_TASK_STACK_SIZE, NULL, EXAMPLE_LVGL_TASK_PRIORITY, NULL,1);

    ESP_LOGI(TAG, "Display LVGL Meter Widget");
    // Lock the mutex due to the LVGL APIs are not thread-safe

   	_lock_acquire(&lvgl_api_lock);
   	example_lvgl_demo_ui(display);
   	_lock_release(&lvgl_api_lock);
}

//这里只是设置了标志
lv_display_set_rotation(display,LV_DISPLAY_ROTATION_0);
//要通过如下函数进行具体实现
static void example_lvgl_port_update_callback(lv_display_t *disp)
{
esp_lcd_panel_handle_t panel_handle = lv_display_get_user_data(disp);
lv_display_rotation_t rotation = lv_display_get_rotation(disp);

switch (rotation) {
case LV_DISPLAY_ROTATION_0:
// Rotate LCD display
esp_lcd_panel_swap_xy(panel_handle, false);
esp_lcd_panel_mirror(panel_handle, false, false);
break;
case LV_DISPLAY_ROTATION_90:
// Rotate LCD display
esp_lcd_panel_swap_xy(panel_handle, true);
esp_lcd_panel_mirror(panel_handle, true, true);
break;
case LV_DISPLAY_ROTATION_180:
// Rotate LCD display
esp_lcd_panel_swap_xy(panel_handle, false);
esp_lcd_panel_mirror(panel_handle, true, true);
break;
case LV_DISPLAY_ROTATION_270:
// Rotate LCD display
esp_lcd_panel_swap_xy(panel_handle, true);
esp_lcd_panel_mirror(panel_handle, true, false);
break;
}
}

static void example_lvgl_flush_cb(lv_display_t *disp, const lv_area_t *area, uint8_t *px_map)
{
example_lvgl_port_update_callback(disp);
esp_lcd_panel_handle_t panel_handle = lv_display_get_user_data(disp);
int offsetx1 = area->x1;
int offsetx2 = area->x2;
int offsety1 = area->y1;
int offsety2 = area->y2;
// because SPI LCD is big-endian, we need to swap the RGB bytes order
lv_draw_sw_rgb565_swap(px_map, (offsetx2 + 1 - offsetx1) * (offsety2 + 1 - offsety1));
// copy a buffer's content to a specific area of the display
esp_lcd_panel_draw_bitmap(panel_handle, offsetx1, offsety1, offsetx2 + 1, offsety2 + 1, px_map);
}
