USB Connectors


Cypress Industries manufactures a wide variety of USB Connectors and Mini USB type A and type B Connectors compatible with both USB 1.1 and USB 2.0 connector specifications.

Most of these USB Connector models are available as USB board mount, SMT and panel mount connectors or USB cable mount connectors.

Please choose the type of USB connector you desire from the Table Below for enlarged pictures and specifications.


*All USB connectors are RoHS compliant*

1.	USB A Receptacle Connector	4.	USB A Quad Stack Connector	7.	USB Mini B Receptacle Connector
2.	USB A Double Stack Connector	5.	USB B Receptacle Connector	8.	USB Mini AB Receptacle Connector
3.	USB A Triple Stack Connector	6.	USB Mini Receptacle Connector

Photo	Description	Part No.	Price
USB A Receptacle Connector
	USB A Type Receptacle Connector R/A DIP Single RoHS compliant Discontinued, recommended alternative CCUSBA-32001-05	CCUSBA-32001-00X Discontinued	N/A

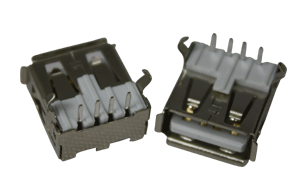

	USB A Type Female DIP 90⁰ White CN RoHS compliant	CCUSBA-32001-05	$3.90

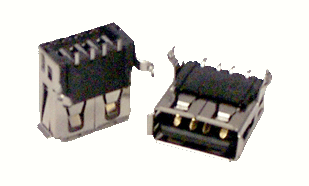

	USB A Type Receptacle R/A SMT Single RoHS compliant	CCUSBA-32001-10X	$4.20

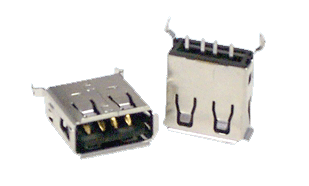

	USB Connector A Type Receptacle Vertical Single RoHS compliant	CCUSBA-32001-30X	$2.85
	USB Connector A Type Receptacle Vertical Single	CCUSBA-32001-40	$2.85
	USB A Type Receptacle Solder Single RoHS compliant Discontinued, recommended alternative CCUSBA-32001-55	CCUSBA-32001-50X Discontinued	N/A

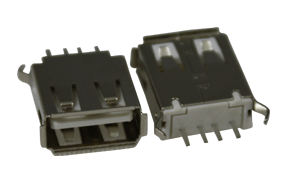

	USB A Type Female DIP 180⁰ White CN RoHS compliant	CCUSBA-32001-55	$3.90

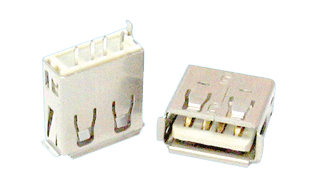

	USB A Type Receptacle Solder Single Side Lock RoHS compliant	CCUSBA-32001-60X	$4.05

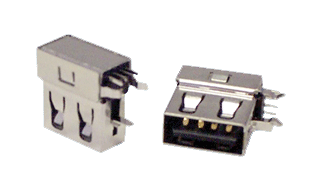

	USB A Type Receptacle Up-Right DIP RoHS compliant	CCUSBA-32001-70X	$4.05
	USB A Type Receptacle Up-Right DIP Type II RoHS compliant Discontinued, recommended alternative CCUSBA-32001-85	CCUSBA-32001-80X Discontinued	N/A

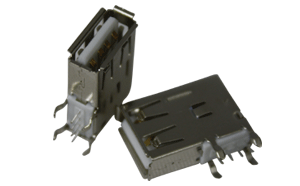

	USB Female A Type Up-Right Type 90⁰ White Insulator CN RoHS compliant	CCUSBA-32001-85	$3.90
USB A Double Stack Connector

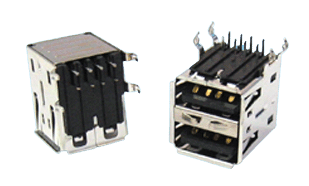

	USB A Type Receptacle Connector R/A DIP Stack Ground W/ Rear Shell RoHS compliant	CCUSBA-32002-00X	$4.05

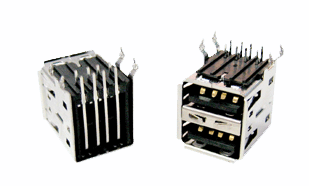

	USB A Type Receptacle R/A DIP Stack Ground W/O Rear Shell RoHS compliant	CCUSBA-32002-10X	$3.90

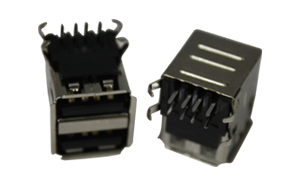

	USB A Type Female Dual Port, DIP 90⁰ White CN RoHS compliant	CCUSBA-32002-15	$3.90
	USB A Type Receptacle R/A DIP Stack W/ Rear Shell RoHS compliant	CCUSBA-32002-20X	$4.05
	USB A Type Female Dual Port, DIP 90⁰ with Front Panel Ground White CN RoHS compliant	CCUSBA-32002-25	$3.90

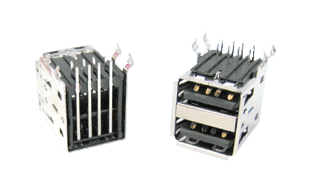

	USB A Type Receptacle R/A DIP Stack W/O Rear Shell RoHS compliant	CCUSBA-32002-30X	$3.90

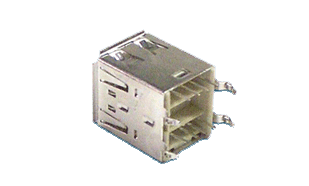

	USB A Type Vertical Stack DIP W/O Ground RoHS compliant	CCUSBA-32002-40X	$4.05

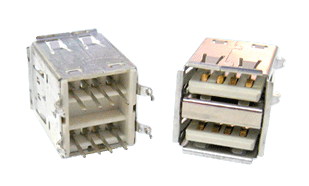

	USB A Type Receptacle Vertical Stack DIP W/O Stopper RoHS compliant	CCUSBA-32002-50X	$4.05
	USB A Type Female Dual Port DIP 180⁰ White RoHS compliant	CCUSBA-32002-55	$3.90

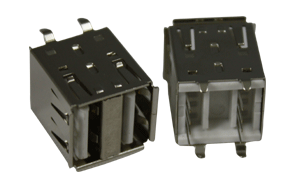

	USB A Type Receptacle Vertical Stack DIP W/ Stopper RoHS compliant	CCUSBA-32002-60X	$3.90

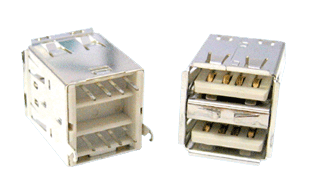

	USB A Type Receptacle Solder Stack W/ Ground cable mount RoHS compliant	CCUSBA-32002-70X	$4.05
USB A Triple Stack Connector
	USB A Type Receptacle Connector R/A DIP Triple RoHS compliant Discontinued, recommended alternative CCUSBA-32003-05	CCUSBA-32003-00X Discontinued	N/A
	USB A Type Receptacle Connector R/A DIP Triple RoHS compliant	CCUSBA-32003-05	$3.90
USB A Quad Stack Connector
	USB A Type Receptacle Connector Flat R/A DIP Quadruple RoHS compliant	CCUSBA-32003-40X	$5.95
USB B Receptacle Connector

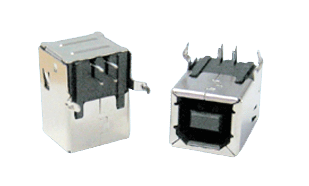

	USB B Type Receptacle Connector R/A DIP Single W/ Rear Shell RoHS compliant	CCUSBB-32004-00X	$2.10
	USB B Type Female DIP 90⁰ Selective Gold 30u" White Withstand High Temperature CN RoHS Compliant	CCUSBB-32004-05	$3.90

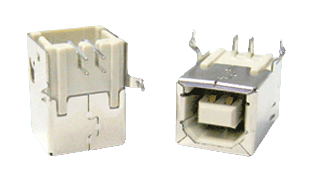

	USB B Type Receptacle R/A DIP Single W/O Rear Shell RoHS compliant	CCUSBB-32004-10X	$1.95

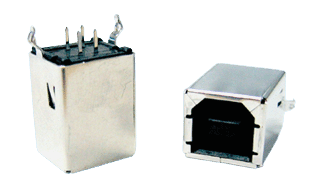

	USB B Type Receptacle Vertical DIP Single 3.60mm RoHS compliant	CCUSBB-32004-30X	$3.90
	USB B Type Female DIP 180⁰ selective Gold 30u" white withstant high temperature RoHS Compliant	CCUSBB-32004-35	$3.90

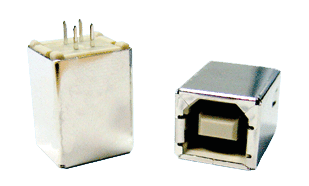

	USB B Type Receptacle Solder Single RoHS compliant	CCUSBB-32004-40X	$3.90
USB Mini Receptacle Connector

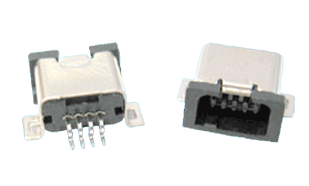

	Mini USB Type Receptacle Connector 4P R/A SMT One Salient Point RoHS compliant	CCMUSB-32005-00X	$2.70
	Mini USB (Hrs) A Type Female SMT 90⁰ Black Insulator With 2 Bump Tube CN RoHS compliant	CCMUSB-32005-05	$3.90
	Mini USB Receptacle 4P R/A SMT Two Salient Point RoHS compliant Discontinued, recommended alternative CCMUSB-32005-15	CCMUSB-32005-10 Discontinued	N/A

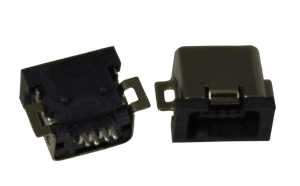

	USB Mini B Female Connector Vertical Thru Hole RoHS compliant	CCMUSB-32005-15	$2.70
USB Mini B Receptacle Connector
	MINI USB 5P B Type Female SMT 90⁰ + Cover Tape Reel 700Pcs/Reel Black Insulator CNRoHS Compliant	CCMUSBB-32005-35	$3.90
	MINI USB B Type Female o5P SMT 90⁰ with Post 4 Shell Tabs DIP Tray CN RoHS Compliant	CCMUSBB-32005-55	$3.90

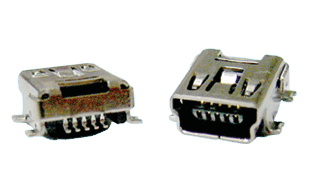

	Mini USB B Type Receptacle Connector SMT W/ Rear Shell RoHS compliant	CCMUSBB-32005-201	$3.90

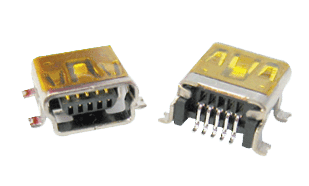

	Mini USB B Receptacle SMT W/O Rear Shell RoHS compliant	CCMUSBB-32005-301	$3.90

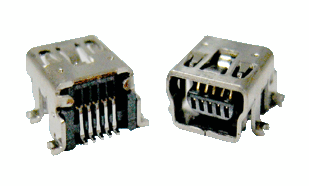

	Mini USB B Receptacle SMT W/O Post RoHS compliant	CCMUSBB-32005-400	$4.05

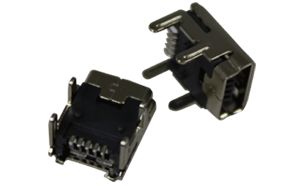

	Mini USB B Receptacle SMT Shell For DIP RoHS compliant	CCMUSBB-32005-501	$4.05

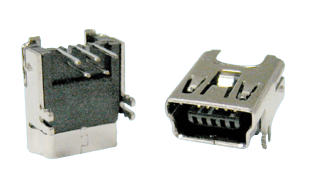

	Mini USB B Receptacle DIP RoHS compliant	CCMUSBB-32005-601	$3.90
USB Mini AB Receptacle Connector
	MINI USB 5P AB Type Female SMT 90⁰ Tube Black Insulator CN RoHS Compliant	CCMUSBAB-32005-75	$3.90
	MINI USB 5P AB Type Female SMT 90⁰ + Cover Tale LCP Brass Shell Tape & Reel 1k/Reel CN RoHS Compliant	CCMUSBAB-32005-78	$3.90

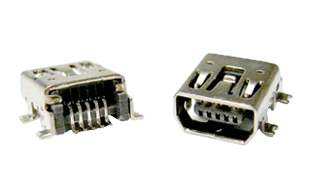

	Mini USB AB Type Receptacle Connector MT RoHS compliant	CCMUSBAB-32005-700	$3.90

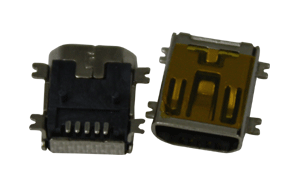

	Mini USB AB Receptacle SMT RoHS, 800/reel, Polymide Tape	CCMUSBAB-32005-710	$3.90
USB Mini B Receptacle Connector - Vertical
	Mini USB B Type Receptacle Connector Vertical Thru-Hole RoHS compliant Discontinued, recommended alternative CCMUSBB-32005-85	CCMUSBB-32005-80X Discontinued	N/A

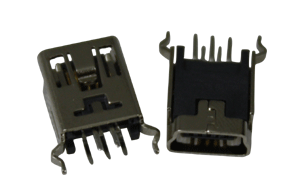

	USB Mini B Female Connector - Vertical Thru Hole RoHS Compliant	CCMUSBB-32005-85	$3.90

To download the Acrobat Reader plugin from Adobe, select this link.

To view PDF files, click on the Adobe PDF icon for that item.

To view Specification, click on the Internet Explorer icon for that item.

Please call for specific USB Connectors not listed or for connector model availability and pricing. Cypress Industries designs and manufacture USB connectors for high volume custom applications, as well as carrying a stock in the United States for small volume, prototyping, and design needs.

All Cypress Industries products are 100% inspected and electronically tested.
