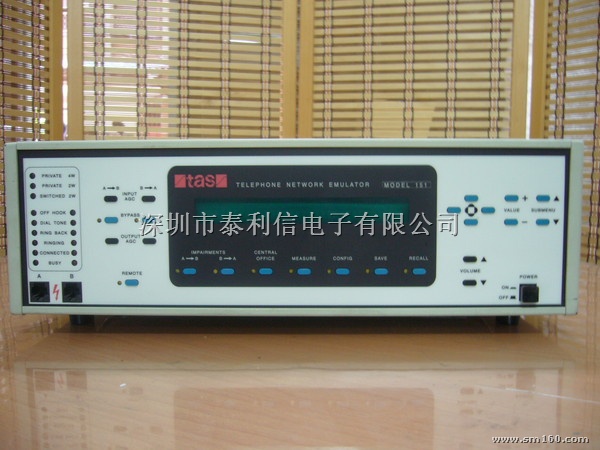

TAS 151 Telephone Network Emulator

TAS 100 provides the mix of critical features required for thorough evaluation in a compact, easy-to-use package. Designers can dramatically reduce development testing time and costs. Manufacturers can detect and stop defective products before they reach the field. Product evaluators can select between data communications products based on real-life performance, not just the specification sheet.

TAS 100 Series Telephone Network Emulators are designed to work with other TAS products to provide complete solutions for testing modems, fax machines, and a host of other data communications equipment. The TAS 100GT Series Automatic Modem Test Systems provide a comprehensive, automatic solution for testing and evaluating virtually all types of modems, including V.34 and V.34+.

Impairments Generator
Input Level Range		+7.0 dBm to -23.0 dBm
Output Level Range		0.0 dBm to -50.0 dBm
PCM
	Number of Links	0-3
	Sampling Rate	8.0 kHz
	Sample Coding	none, mu-law, or A-law
	Position	before or after analog impairments
Robbed Bit Signaling
	Bits Affected	least significant bit of every 6th PCM sample
	Pattern	alternating 1/0
White Noise
	Level Calibration Choices	C-message, 3.0 kHz flat, psophometric
	Level Range	20.0 dBrn to 90.0 dBrn
Intermodulation Distortion
	2nd Order Range	20 dB to 55 dB below signal
	3rd Order Range	20 dB to 55 dB below signal
	Type	expansive or compressive
Frequency Shift
	Offset	-19.75 to 19.75 Hz
Phase Jitter
	Level Range	0.0 to 45.0 degrees p-p
	Frequency Range	0.0 to 300.0 Hz
Gain Hits
	Level Range	-20.0 to +6.0 dB
	Risetime Range	0.2 to 990 msec.
	Duration Range	1.0 to 20000 msec.
	Interval Range	0.1 to 320.0 sec.
Phase Hits
	Level Range	0.0 to 90.0 degrees
	Risetime Range	0.2 to 990 msec.
	Duration Range	1.0 to 20000 msec.
	Interval Range	0.1 to 320.0 sec.
Impulse Noise
	Type	IEEE Standard
	Level Range	0.0 to 55.0 dB below signal
	Interval Range	0.1 to 320.0 sec.
	Calibration	C-notched
Amplitude Jitter
	Level Range	0.0 to 98.0%
	Frequency Range	0.0 to 300.0 Hz
Single Frequency Interference
	Frequency Range	0.0 to 3400.0 Hz
	Level Range	0.0 to 50.0 dB below signal output level
General Central Office Emulation
	Operating Modes	2-wire switched (loop start), 2-wire auto-switched, 2-wire private line 4-wire private line, 4-wire private/2-wire switched, site A 2-wire switched (), site B 2-wire switched ()
