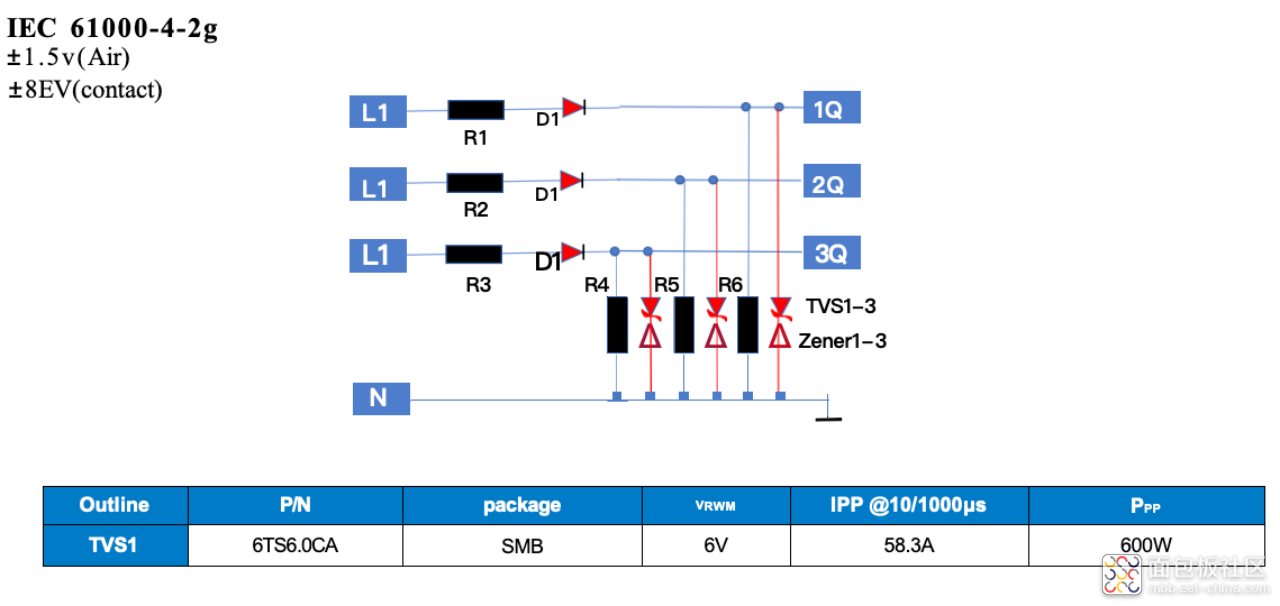

这张电路图展示了一个符合IEC 61000-4-2标准的电压取样端口静电浪涌防护方案，下面是对该方案的详细描述：
工作原理
该方案的核心在于通过保护二极管和TVS（瞬态电压抑制）元件来限制过压。当静电浪涌来临时，这些元件会迅速响应，将过高的电压钳位到一个安全的水平，从而确保后端电路不受损害。
实现方式
在电路图中，每个线路（L1到N）上都连接了一个保护二极管D1。
这些二极管的主要作用是防止电压反向流动，从而保护电路免受反向电压的冲击。
电阻在电路中起到限流和分压的作用；它们可以限制通过保护元件的电流，防止过大的电流损坏元件，确保电路的稳定运行。
TVS元件是一种高效的电路保护器件，具有极快的响应时间和很高的浪涌吸收能力。
当静电浪涌来临时，TVS元件会迅速导通，将浪涌电压钳位到一个安全的水平，从而保护后端电路免受损害。
齐纳二极管是一种特殊的二极管，可以在反向击穿状态下工作，并且具有稳定的击穿电压。
在这个防护方案中，齐纳二极管用于进一步稳定电压，确保电压在安全的范围内波动。
关键元件的作用
通过这些元件的协同工作，该防护方案能够有效地吸收和分流静电浪涌，保护电压取样端口免受损害，确保电路的稳定运行。
PartNumber | VR | IR@VR | VBR@I | IT | Vc@lPP | Ipp | ||
Uni-Polar | Bi-Polar | V | μA | min(V) | max(V) | mA | max(V) | A |
6TS3.3A | - | 3.3 | 600 | 5.2 | 6 | 10 | 8.0 | 75.00 |
6TS5.0A | 6TS5.0CA | 5.0 | 800 | 6.40 | 7.00 | 10 | 9.2 | 65.22 |
6TS6.0A | 6TS6.0CA | 6.0 | 800 | 6.67 | 7.37 | 10 | 10.3 | 58.26 |
6TS6.5A | 6TS6.5CA | 6.5 | 500 | 7.22 | 7.98 | 10 | 11.2 | 53.58 |
6TS7.0A | 6TS7.0CA | 7.0 | 200 | 7.78 | 8.60 | 10 | 12.0 | 50.00 |
6TS7.5A | 6TS7.5CA | 7.5 | 100 | 8.33 | 9.21 | 1 | 12.9 | 46.52 |
6TS8.0A | 6TS8.0CA | 8.0 | 50 | 8.89 | 9.83 | 1 | 13.6 | 44.12 |
6TS8.5A | 6TS8.5CA | 8.5 | 20 | 9.44 | 10.40 | 1 | 14.4 | 41.67 |
6TS9.0A | 6TS9.0CA | 9.0 | 10 | 10.00 | 11.10 | 1 | 15.4 | 38.97 |
6TS10A | 6TS10CA | 10.0 | 5 | 11.10 | 12.30 | 1 | 17.0 | 35.30 |
6TS11A | 6TS11CA | 11.0 | 1 | 12.20 | 13.50 | 1 | 18.2 | 32.97 |
6TS12A | 6TS12CA | 12.0 | 1 | 13.30 | 14.70 | 1 | 19.9 | 30.16 |
6TS13A | 6TS13CA | 13.0 | 1 | 14.40 | 15.90 | 1 | 21.5 | 27.91 |
6TS14A | 6TS14CA | 14.0 | 1 | 15.60 | 17.20 | 1 | 23.2 | 25.87 |
6TS15A | 6TS15CA | 15.0 | 1 | 16.70 | 18.50 | 1 | 24.4 | 24.60 |
6TS16A | 6TS16CA | 16.0 | 1 | 17.80 | 19.70 | 1 | 26.0 | 23.08 |
6TS17A | 6TS17CA | 17.0 | 1 | 18.90 | 20.90 | 1 | 27.6 | 21.74 |
6TS18A | 6TS18CA | 18.0 | 1 | 20.00 | 22.10 | 1 | 29.2 | 20.55 |
6TS20A | 6TS20CA | 20.0 | 1 | 22.20 | 24.50 | 1 | 32.4 | 18.52 |
6TS22A | 6TS22CA | 22.0 | 1 | 24.40 | 26.90 | 1 | 35.5 | 16.91 |
6TS24A | 6TS24CA | 24.0 | 1 | 26.70 | 29.50 | 1 | 38.9 | 15.43 |
6TS26A | 6TS26CA | 26.0 | 1 | 28.90 | 31.90 | 1 | 42.1 | 14.26 |
6TS28A | 6TS28CA | 28.0 | 1 | 31.10 | 34.40 | 1 | 45.4 | 13.22 |
6TS30A | 6TS30CA | 30.0 | 1 | 33.30 | 36.80 | 1 | 48.4 | 12.40 |
6TS33A | 6TS33CA | 33.0 | 1 | 36.70 | 40.60 | 1 | 53.3 | 11.26 |
6TS36A | 6TS36CA | 36.0 | 1 | 40.00 | 44.20 | 1 | 58.1 | 10.33 |
6TS40A | 6TS40CA | 40.0 | 1 | 44.40 | 49.10 | 1 | 64.5 | 9.31 |
6TS43A | 6TS43CA | 43.0 | 1 | 47.80 | 52.80 | 1 | 69.4 | 8.65 |
6TS45A | 6TS45CA | 45.0 | 1 | 50.00 | 55.30 | 1 | 72.7 | 8.26 |
6TS48A | 6TS48CA | 48.0 | 1 | 53.30 | 58.90 | 1 | 77.4 | 7.76 |
6TS51A | 6TS51CA | 51.0 | 1 | 56.70 | 62.70 | 1 | 82.4 | 7.29 |
6TS54A | 6TS54CA | 54.0 | 1 | 60.00 | 66.30 | 1 | 87.1 | 6.89 |
6TS58A | 6TS58CA | 58.0 | 1 | 64.40 | 71.20 | 1 | 93.6 | 6.42 |
6TS60A | 6TS60CA | 60.0 | 1 | 66.70 | 73.70 | 1 | 96.8 | 6.20 |
6TS64A | 6TS64CA | 64.0 | 1 | 71.10 | 78.60 | 1 | 103.0 | 5.83 |
—2— | ||||||||
PartNumber | VR | IR@VR | VBR@Ir | I | Vc@Ipp | Ipp | ||
Uni-Polar | Bi-Polar | V | μA | min(V) | max(V) | mA | max(V) | A |
6TS70A | 6TS70CA | 70.0 | 1 | 77.80 | 86.00 | 1 | 113.0 | 5.31 |
6TS75A | 6TS75CA | 75.0 | 1 | 83.30 | 92.10 | 1 | 121.0 | 4.96 |
6TS78A | 6TS78CA | 78.0 | 1 | 86.70 | 95.80 | 1 | 126.0 | 4.77 |
6TS85A | 6TS85CA | 85.0 | 1 | 94.40 | 104.0 | 1 | 137.0 | 4.38 |
6TS90A | 6TS90CA | 90.0 | 1 | 100.0 | 111.0 | 1 | 146.0 | 4.11 |
6TS100A | 6TS100CA | 100.0 | 1 | 111.0 | 123.0 | 1 | 162.0 | 3.71 |
6TS110A | 6TS110CA | 110.0 | 1 | 122.0 | 135.0 | 1 | 177.0 | 3.39 |
6TS120A | 6TS120CA | 120.0 | 1 | 133.0 | 147.0 | 1 | 193.0 | 3.11 |
6TS130A | 6TS130CA | 130.0 | 1 | 144.0 | 159.0 | 1 | 209.0 | 2.88 |
6TS150A | 6TS150CA | 150.0 | 1 | 167.0 | 185.0 | 1 | 243.0 | 2.47 |
6TS160A | 6TS160CA | 160.0 | 1 | 178.0 | 197.0 | 1 | 259.0 | 2.32 |
6TS¹70A | 6TS170CA | 170.0 | 1 | 189.0 | 209.0 | 1 | 275.0 | 2.19 |
6TS180A | 6TS180CA | 180.0 | 1 | 201.0 | 222.0 | 1 | 292.0 | 2.06 |
6TS190A | 6TS190CA | 190.0 | 1 | 209.0 | 233.0 | 1 | 308.0 | 1.96 |
6TS200A | 6TS200CA | 200.0 | 1 | 224.0 | 247.0 | 1 | 324.0 | 1.86 |
6TS210A | 6TS210CA | 210.0 | 1 | 237.0 | 263.0 | 1 | 340.0 | 1.79 |
6TS220A | 6TS220CA | 220.0 | 1 | 246.0 | 272.0 | 1 | 356.0 | 1.69 |
6TS250A | 6TS250CA | 250.0 | 1 | 279.0 | 309.0 | 1 | 405.0 | 1.49 |
6TS300A | 6TS300CA | 300.0 | 1 | 335.0 | 371.0 | 1 | 486.0 | 1.24 |
6TS350A | 6TS350CA | 350.0 | 1 | 391.0 | 432.0 | 1 | 567.0 | 1.06 |
6TS400A | 6TS400CA | 400.0 | 1 | 447.0 | 494.0 | 1 | 648.0 | 0.93 |
6TS440A | 6TS440CA | 440.0 | 1 | 492.0 | 543.0 | 1 | 713.0 | 0.85 |
