reactor有什么优势?350行C代码实现epoll reactor模型
Linux开发架构之路 2024-05-17

有了epoll为什么还需要reactor?

  • 响应快,不必为单个同步事件所阻塞,虽然 Reactor 本身依然是同步的;

  • 编程相对简单,可以最大程度的避免复杂的多线程及同步问题,并且避免了多线程/进 程的切换开销;

  • 可扩展性,可以方便的通过增加 Reactor 实例个数来充分利用 CPU 资源;

  • 可复用性,reactor 框架本身与具体事件处理逻辑无关,具有很高的复用性;

reactor的思想:将对IO的处理转化为对事件的处理。

reactor包括5个部分

  1. reactor管理器:注册和删除事件,运行事件循环,分发事件到已注册的回调函数上

  2. 事件解复用器:epoll等各个平台的IO多路复用API的封装

  3. fd

  4. 事件处理器接口

  5. 具体的事件处理器:由用户实现事件处理器接口

reactor封装

  • reactor_init

  • reactor_run

  • reactor_free

  • accept_cb

  • recv_cb

  • send_cb

accept_cb里可以实现IP限制,负载均衡

reactor注意事项

  • 1个fd对应一个user_data,epoll管理所有的IO

  • ET模式收发数据要循环,一次recv BUF_LEN数据,直到返回-1或recv_len等于BUF_LEN。send返回长度如果小于指定大小,则需要注册写事件

  • 为了避免读写数据时阻塞,socket需要设置成非阻塞的

  • ocket是否阻塞影响的API:send,recv,connect,accpet

reactor模型

单reactor

多reactor(one loop one thread)(可以有一个reactor专门监听连接)

多进程reactor:多个子进程监听同一个端口,通过共享内存决定哪个进程来accept,nginx在用户态解决惊群问题

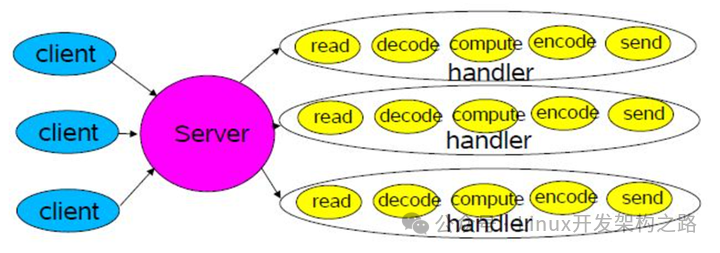

thread per request

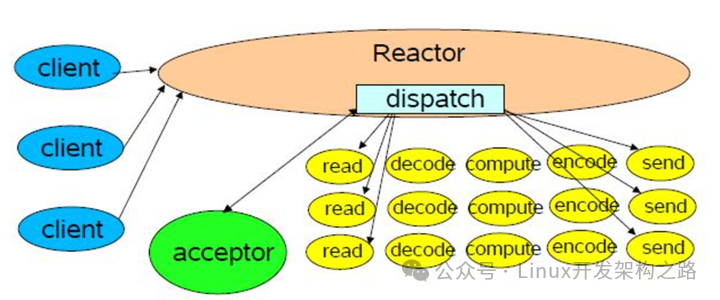

单线程模型

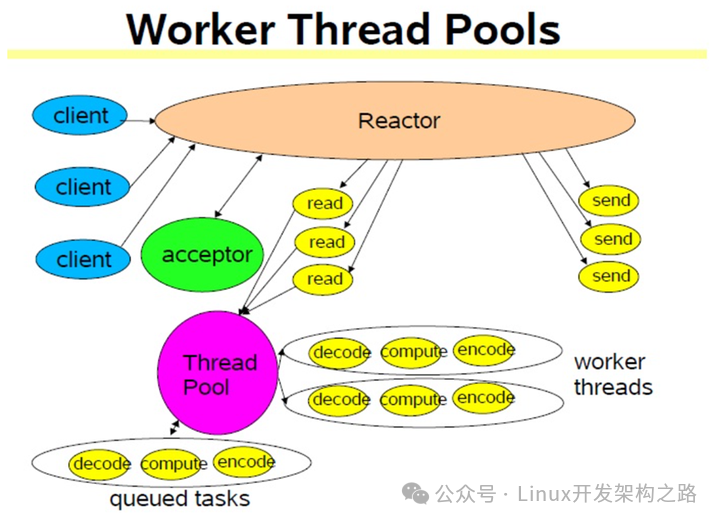

多线程模型(单reactor)

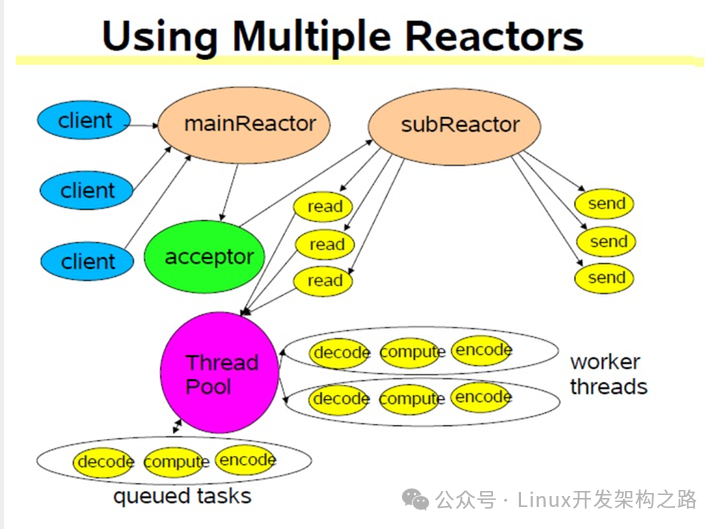

多线程模型(多reactor)

单线程reactor实现

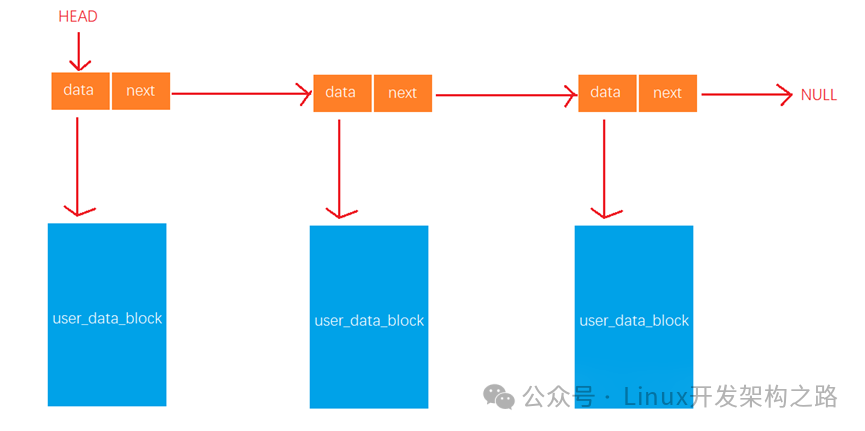

一个数据块有1024个fd,数据块之间用链表连接。每次fd超过上限时分配1个数据块然后添加到链表尾部。

需要C/C++ Linux服务器架构师学习资料加qun812855908获取(资料包括C/C++,Linux,golang技术,Nginx,ZeroMQ,MySQL,Redis,fastdfs,MongoDB,ZK,流媒体,CDN,P2P,K8S,Docker,TCP/IP,协程,DPDK,ffmpeg等),免费分享


代码实现:

#include #include #include #include // sockaddr_in #include #include // inet_addr #include #include #include // atoi #include #include // fcntl #define MAX_EPOLL_EVENT 1024 #define BUF_SIZE 1024 #define NO_EVENT 0 #define ACCEPT_EVENT 1 #define READ_EVENT 2 #define WRITE_EVENT 3 #define exitif(s, err_str) do { \ if(s) { \ printf("%s: %s(code:%d)\n", err_str, strerror(errno), errno); \ } \ } while(0); typedef int (*EVENT_CALLBACK)(int fd, int events, void* args); typedef struct _user_data { int fd; uint32_t events; void* args; EVENT_CALLBACK accept_cb; EVENT_CALLBACK read_cb; EVENT_CALLBACK write_cb; char send_buf[BUF_SIZE]; char recv_buf[BUF_SIZE]; int send_buf_len; int recv_buf_len; } user_data; // 1个用户数据块有1024个用户数据 typedef struct _user_data_block { struct _user_data_block* next; user_data* user_data_array; } user_data_block; typedef struct _reactor { short listenfd; int epfd; user_data_block* head; // 用户数据块链表,head指向第1个数据快 } reactor; void reactor_set_event(/* reactor* r, */ int fd, int event_type, void* args); void reactor_del_event(int fd, int event_type, void* args); int set_fd_nonblock(int fd) { return fcntl(fd, F_SETFL, fcntl(fd, F_GETFL) | O_NONBLOCK); } int init_server(short port) { int fd = socket(AF_INET, SOCK_STREAM, 0); exitif(-1 == fd, "socket"); int ret = set_fd_nonblock(fd); exitif(-1 == ret, "set_fd_nonblock"); struct sockaddr_in local_addr; int addr_len = sizeof(struct sockaddr_in); memset(&local_addr, 0, addr_len); local_addr.sin_family = AF_INET; local_addr.sin_addr.s_addr = htonl(INADDR_ANY); local_addr.sin_port = htons(port); ret = bind(fd, (struct sockaddr *)&local_addr, addr_len); exitif(-1 == ret, "bind"); ret = listen(fd, 5); exitif(-1 == ret, "listen"); return fd; } // 获取第fd / MAX_EPOLL_EVENT个数据块的第fd % MAX_EPOLL_EVENT个user_data user_data* reactor_user_data(reactor* r, int fd) { if (!r || !r->head) { return NULL; } user_data_block* block = r->head; user_data_block* prev_block = NULL; int index = fd / MAX_EPOLL_EVENT; while (index >= 0) { if (!block) { block = calloc(sizeof(user_data_block), 1); block->next = NULL; block->user_data_array = calloc(sizeof(user_data), MAX_EPOLL_EVENT); if (NULL == block->user_data_array) { free(block); block = NULL; close(r->epfd); exitif(1, "NULL == block->user_data_array"); } if (prev_block) { prev_block->next = block; } } prev_block = block; block = block->next; --index; } return &prev_block->user_data_array[fd % MAX_EPOLL_EVENT]; } // 没有returngcc为什么没有报错? reactor* reactor_create() { reactor* r = calloc(sizeof(reactor), 1); r->epfd = epoll_create(1); r->head = calloc(sizeof(user_data_block), 1); if (NULL == r->head) { close(r->epfd); exitif(1, "NULL == r->head"); } r->head->next = NULL; r->head->user_data_array = calloc(sizeof(user_data), MAX_EPOLL_EVENT); if (NULL == r->head->user_data_array) { free(r->head); r->head = NULL; close(r->epfd); exitif(1, "NULL == r->head->user_data_array"); } return r; } int reactor_accept_cb(int fd, int events, void* args) { printf("reactor_accept_cb\n"); struct sockaddr_in peer_addr; memset(&peer_addr, 0, sizeof(struct sockaddr_in)); socklen_t peer_addr_len = sizeof(peer_addr); // ADDR_LEN要设为sockaddr_in的实际大小,否则会出现端口为0的情况 int clientfd = accept(fd, (struct sockaddr *)&peer_addr, (socklen_t *)&peer_addr_len); exitif(-1 == clientfd, "accept"); int ret = set_fd_nonblock(clientfd); exitif(-1 == ret, "set_fd_nonblock"); printf("new connection from fd: %d, address:%s:%d\n\n", clientfd, inet_ntoa(peer_addr.sin_addr), ntohs(peer_addr.sin_port)); reactor_set_event(clientfd, READ_EVENT, args); return 0; } int reactor_read_cb(int fd, int events, void* args) { printf("reactor_read_cb\n"); reactor* r = args; user_data* ud = reactor_user_data(r, fd); // TODO: socket是非阻塞的,需要循环接收 char *recv_buf = ud->recv_buf; int n = recv(fd, recv_buf, BUF_SIZE, 0); if (n < 0) { printf("recv errno: %s\n", strerror(errno)); return -1; } else if (n == 0) { printf("client closed, fd: %d\n", fd); reactor_del_event(fd, 0, args); close(fd); // free(ud); } else { recv_buf[n] = '\0'; printf("recv from fd %d, msg: %s", fd, recv_buf); char *send_buf = ud->send_buf; ud->recv_buf_len = n; ud->send_buf_len = n; memcpy(send_buf, recv_buf, n); reactor_set_event(fd, WRITE_EVENT, args); } return 0; } int reactor_write_cb(int fd, int events, void* args) { printf("reactor_write_cb\n"); reactor* r = args; user_data* ud = reactor_user_data(r, fd); int send_len = ud->send_buf_len; char* send_buf = ud->send_buf; send_buf[send_len] = '\0'; int nsend = send(fd, send_buf, send_len, 0); if (nsend < 0) { printf("send errno: %s\n", strerror(errno)); return -1; } else if (nsend == 0) { printf("send, client closed, fd: %d\n", fd); reactor_del_event(fd, 0, args); close(fd); } else { printf("send to fd %d, msg:%s\n", fd, send_buf); reactor_set_event(fd, READ_EVENT, args); } return 0; } // 这里用来设置事件,回调函数 void reactor_set_event(int fd, int event_type, void* args) { struct epoll_event watch_event = {0}; reactor* r = args; user_data* ud = reactor_user_data(r, fd); ud->fd = fd; ud->args = args; if (ACCEPT_EVENT == event_type) { watch_event.events = EPOLLIN; ud->accept_cb = reactor_accept_cb; } else if (READ_EVENT == event_type) { watch_event.events = EPOLLIN; ud->read_cb = reactor_read_cb; } else if (WRITE_EVENT == event_type) { watch_event.events = EPOLLOUT; ud->write_cb = reactor_write_cb; } watch_event.data.ptr = ud; if (NO_EVENT == ud->events) { int ret = epoll_ctl(r->epfd, EPOLL_CTL_ADD, fd, &watch_event); exitif(-1 == ret, "EPOLL_CTL_ADD"); } else { int ret = epoll_ctl(r->epfd, EPOLL_CTL_MOD, fd, &watch_event); exitif(-1 == ret, "EPOLL_CTL_MOD"); } ud->events = event_type; } void reactor_del_event(int fd, int event_type, void* args) { struct epoll_event watch_event = {0}; reactor* r = args; // fix bug: client退出没有重置events导致 EPOLL_CTL_MOD: No such file or directory(code:2) user_data* ud = reactor_user_data(r, fd); ud->events = NO_EVENT; int ret = epoll_ctl(r->epfd, EPOLL_CTL_DEL, fd, &watch_event); exitif(-1 == ret, "epoll_ctl"); } void reactor_create_server(short port, void* args) { reactor* r = args; r->listenfd = init_server(port); reactor_set_event(r->listenfd, ACCEPT_EVENT, r); } void reactor_loop(void* args) { reactor* r = args; // 就绪事件列表 struct epoll_event ready_events[MAX_EPOLL_EVENT] = {0}; while (1) { int nready = epoll_wait(r->epfd, ready_events, MAX_EPOLL_EVENT, 3000); if (nready < 0) { if (EINTR == errno) { continue; } exitif(-1 == nready, "epoll_wait"); } // 就绪事件对应于events数组的下标[0, nready - 1] int i; for (i = 0; i < nready; ++i) { user_data* ud = (user_data *)ready_events[i].data.ptr; int fd = ud->fd; if (ACCEPT_EVENT == ud->events) { ud->accept_cb(fd, 0, r); } else { // 多个cb,用多个if if (EPOLLIN & ready_events[i].events) { ud->read_cb(fd, 0, r); } if (EPOLLOUT & ready_events[i].events) { // TODO: ET模式需要循环发送 ud->write_cb(fd, 0, r); } } } } } void reactor_free(void* args) { reactor* r = args; user_data_block* cur; while (r->head) { cur = r->head; r->head = r->head->next; if (cur) { if (cur->user_data_array) { free(cur->user_data_array); cur->user_data_array = NULL; } free(cur); cur = NULL; } } close(r->epfd); close(r->listenfd); } int main(int argc, char *argv[]) { if (argc < 2) { printf("usage: %s port\n", argv[0]); return -1; } // 创建reactor reactor* r = reactor_create(); // 创建server reactor_create_server(atoi(argv[1]), r); // 事件循环 reactor_loop(r); // 销毁reactor reactor_free(r); return 0; }

代码理解

  • user_data 每个fd对应1个item,存储fd相关事件,回调函数,读写缓冲区

  • user_data_block 链表节点,每个结点有1个数据块,包含1024个fd item

  • reactor 管理所有fd,包含数据块链表的头节点

  • reactor_create 初始化reactor结构体

  • reactor_accept_cb 接受连接,设置读事件

  • reactor_read_cb 接收数据,设置写数据(回发)

  • reactor_write_cb 发送数据,设置读事件

  • reactor_create_server 创建监听fd,并添加到epoll

  • reactor_loop 事件循环,根据事件类型调用回调函数

  • reactor_free 释放reactor内存,关闭socket

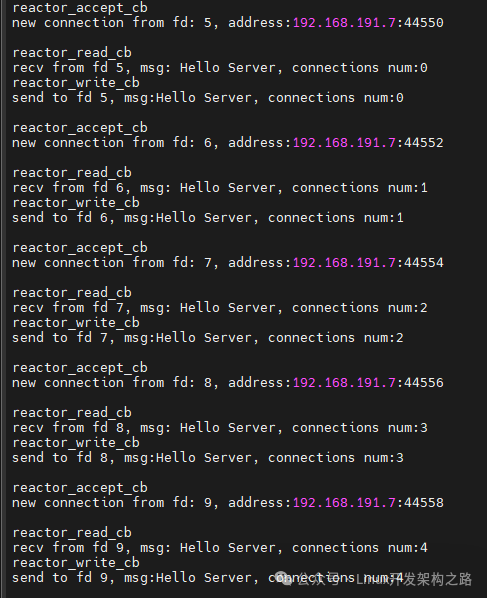

运行截图
