半导体晶圆集成电路故障模式及失效案例分析
0 2023-11-23

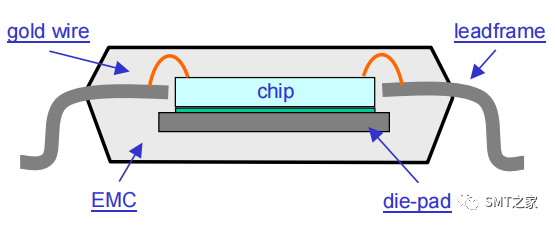

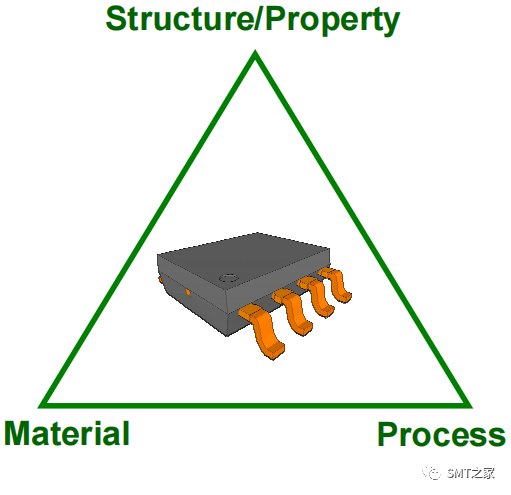

Structure of conventional package 传统封装结构

Failure ClassificationPhysical Failure (Structure)- Popcorn- Delamination- Crack (Package/Die)Electrical Failure (Connection)- Open- Short- Leakage- FunctionIn-Process Failure (Production)- Front-end (before molding)- Back-end (After molding)- Testing (FT/Burn-in)Reliability Failure (Qualification)- Temperature- Humidity- Pressure- Voltage

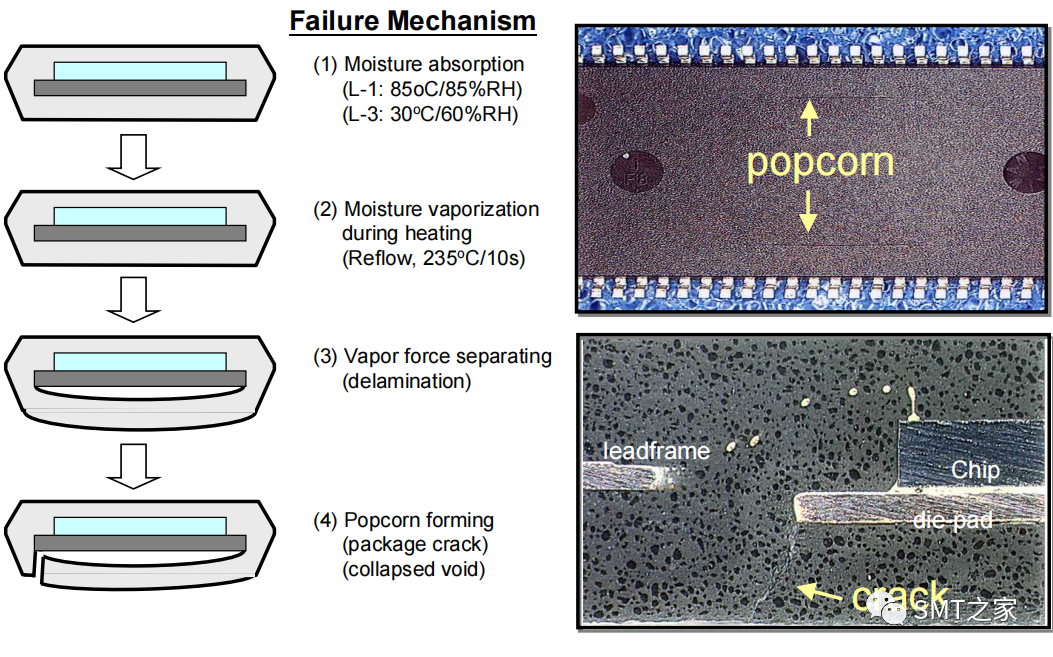

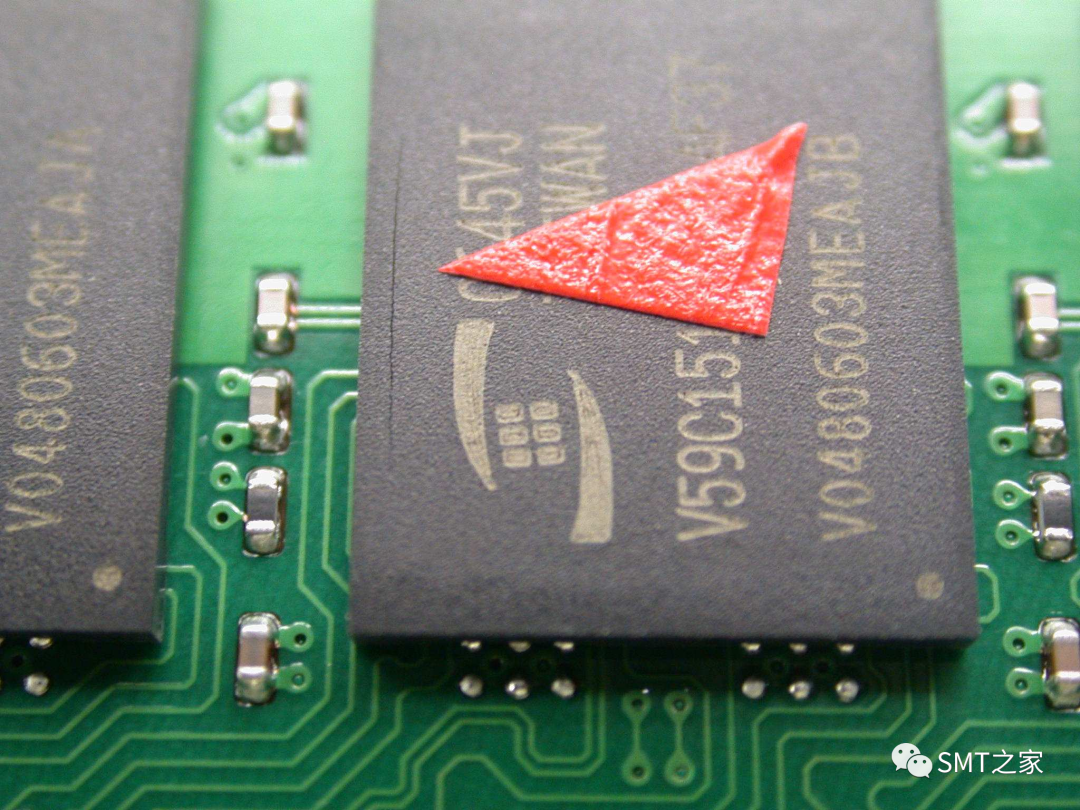

Popcorn (爆裂)

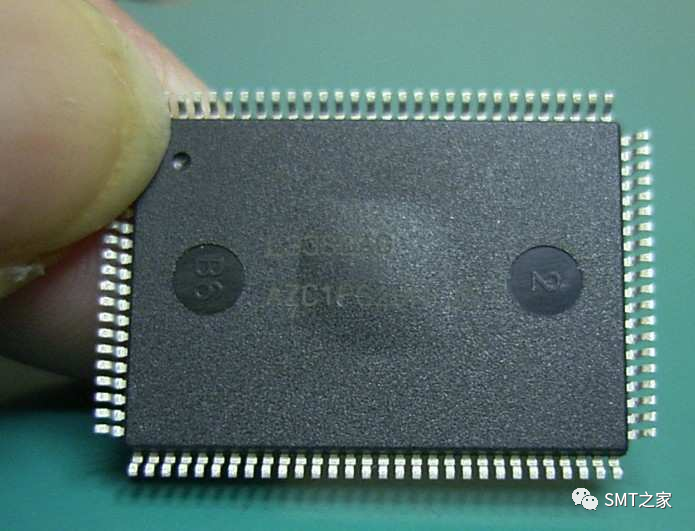

TQFP package (bottom popcorn)

FBGA package (top popcorn)

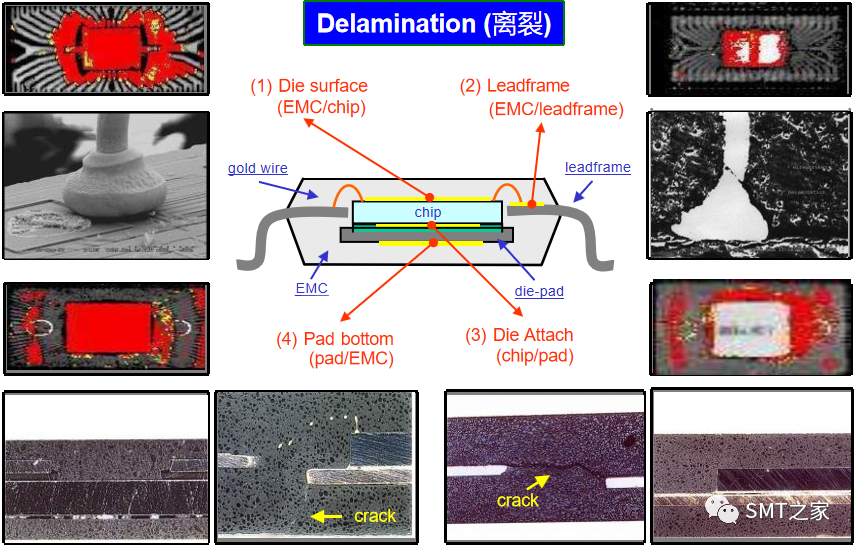

Delamination (离裂)

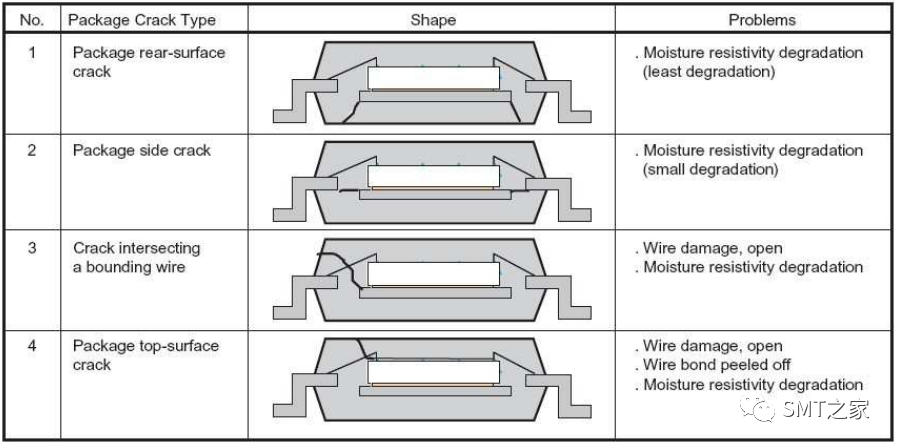

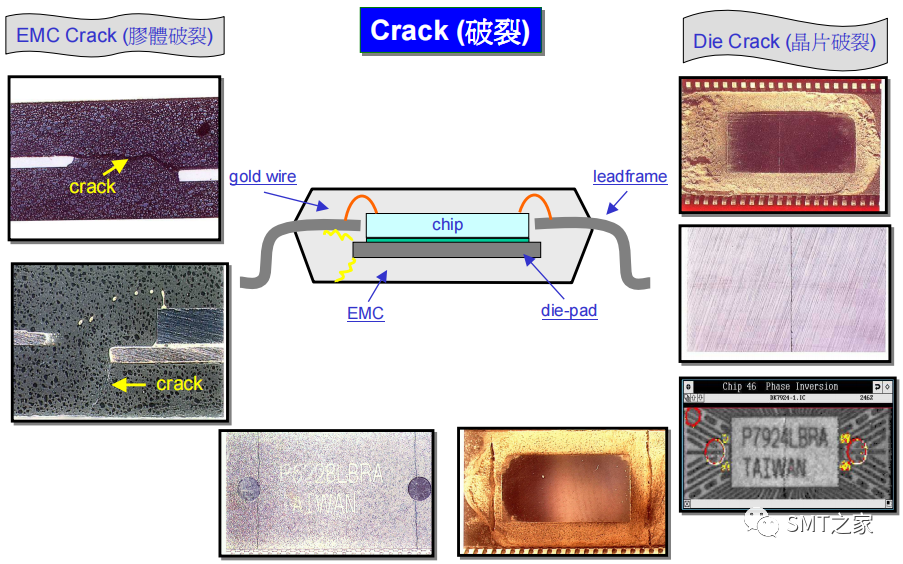

Crack (破裂)

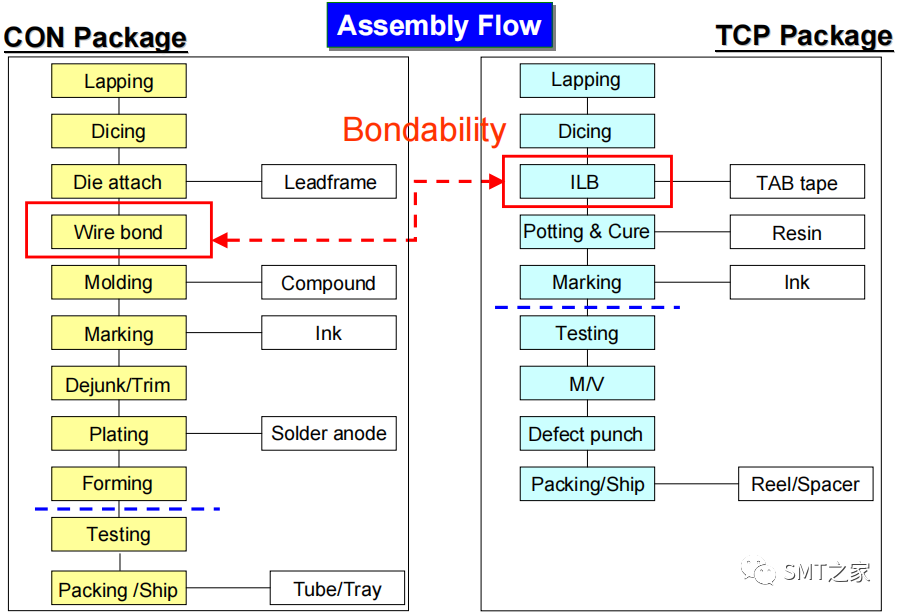

Assembly Flow 装配流程

Wiring Bondability (TSOP/BGA)

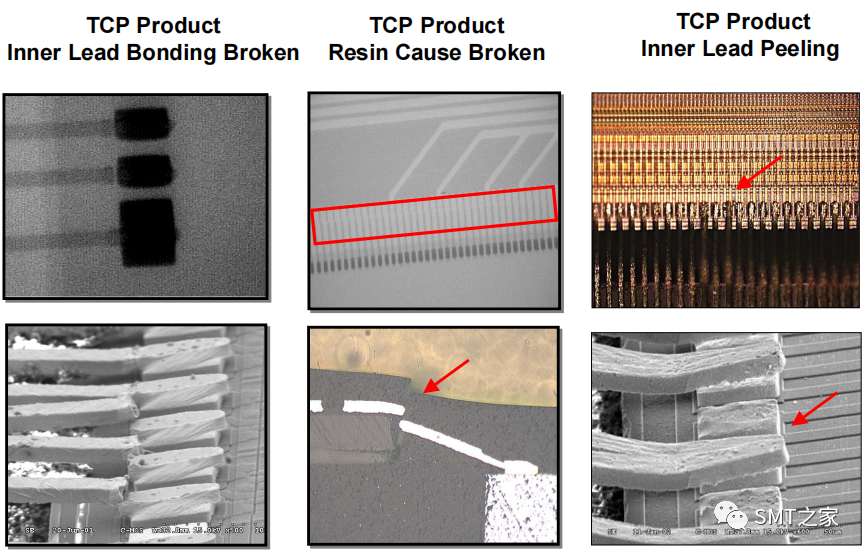

Inner Lead Bondability (TCP/COF) 内部引线可焊性(TCP/COF)

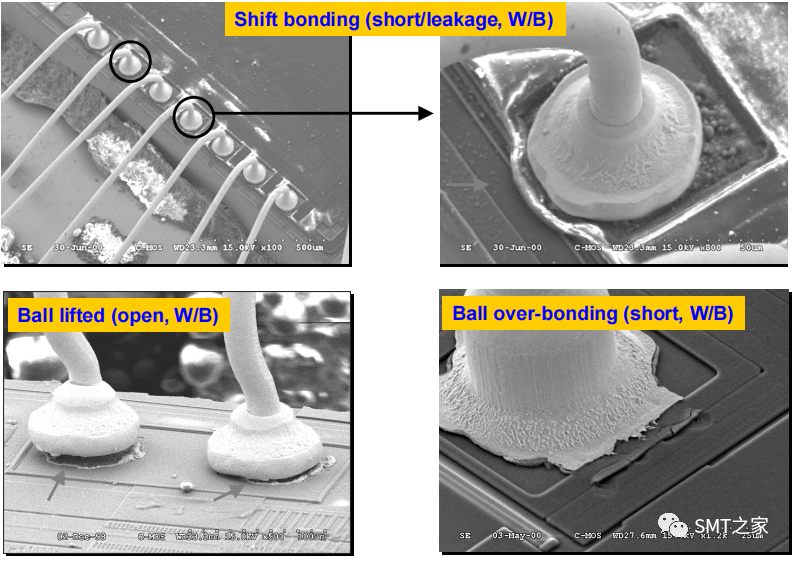

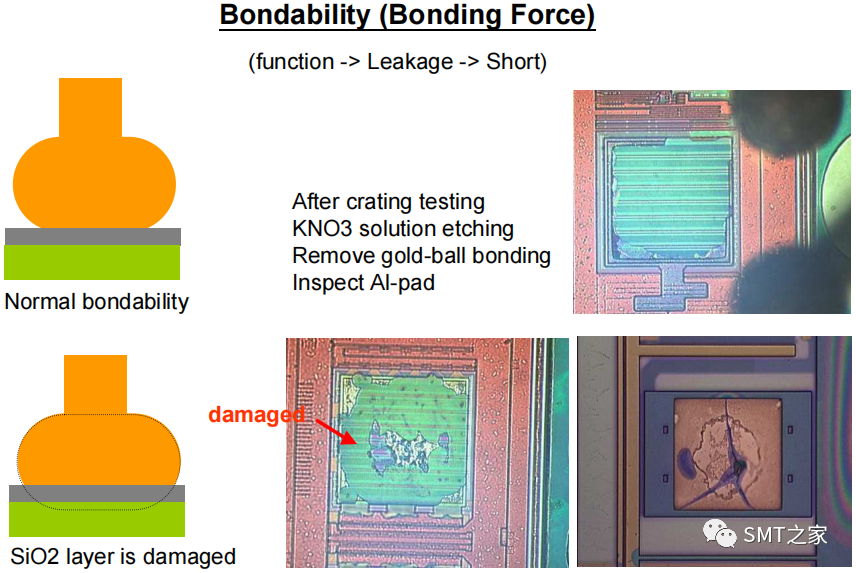

Bondability (Bonding Force) 可结合性,可焊性(结合力)

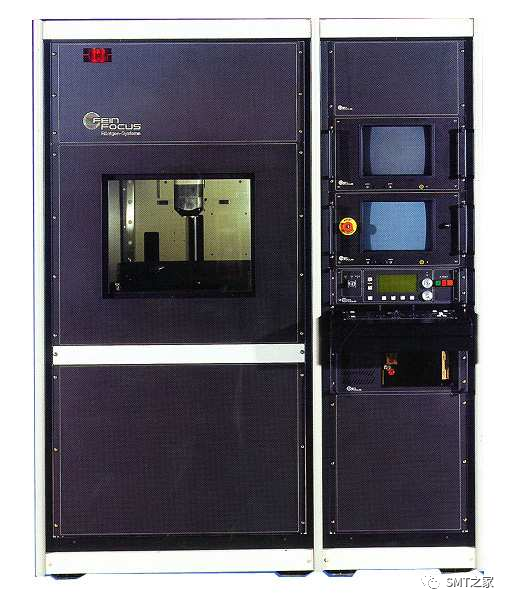

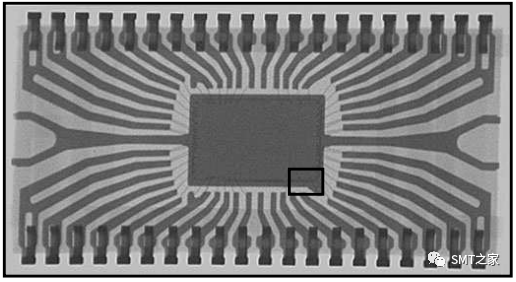

X-RAY Inspection (NDT)

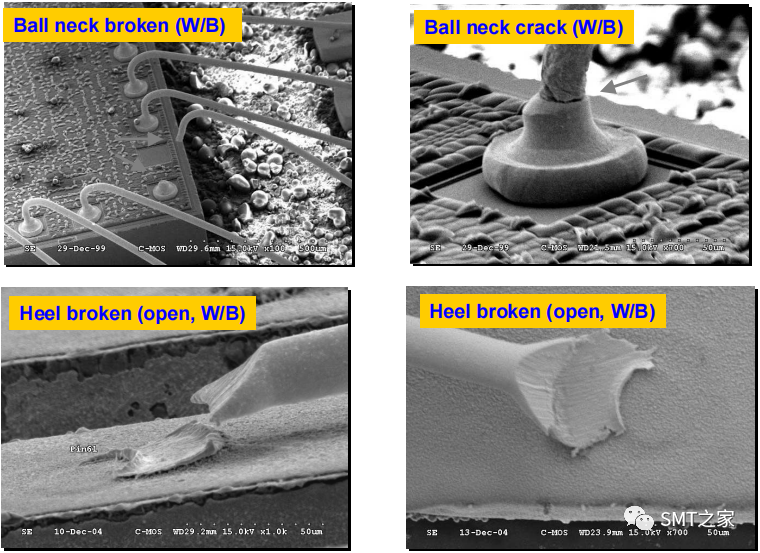

2nd BondingBroken

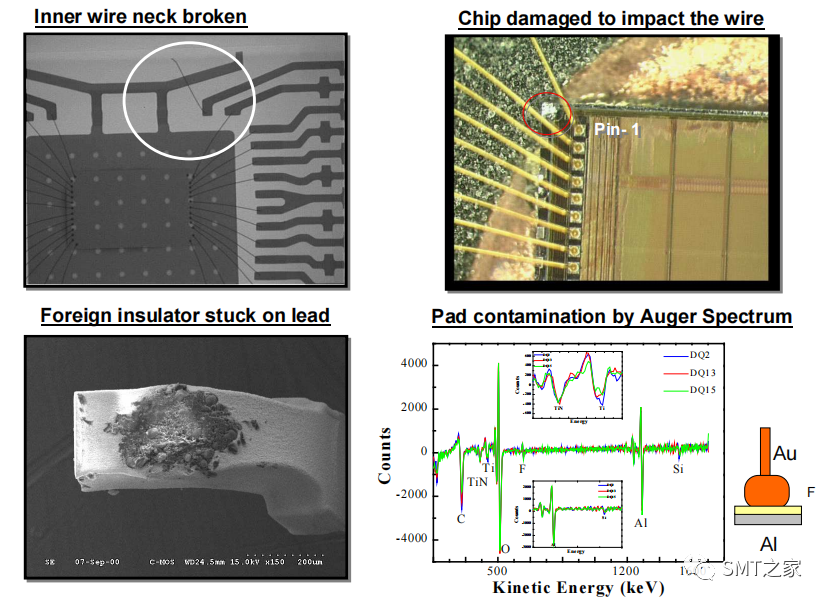

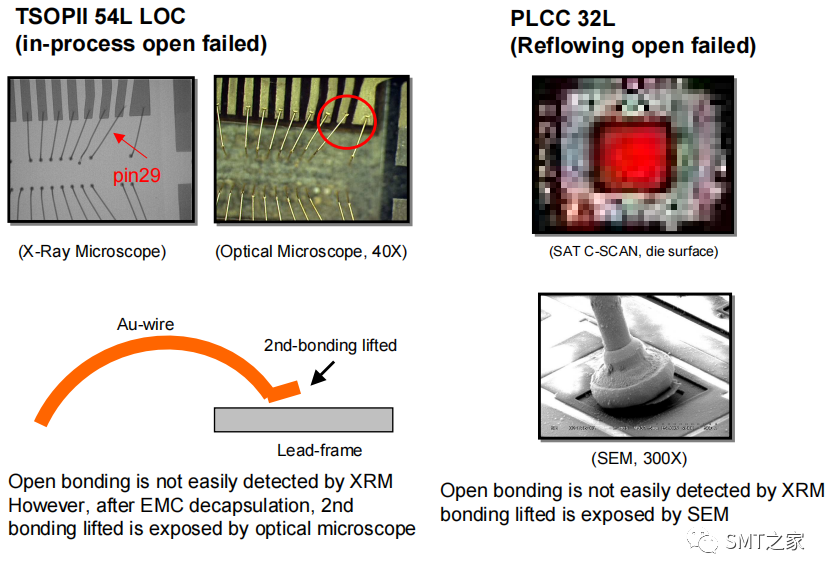

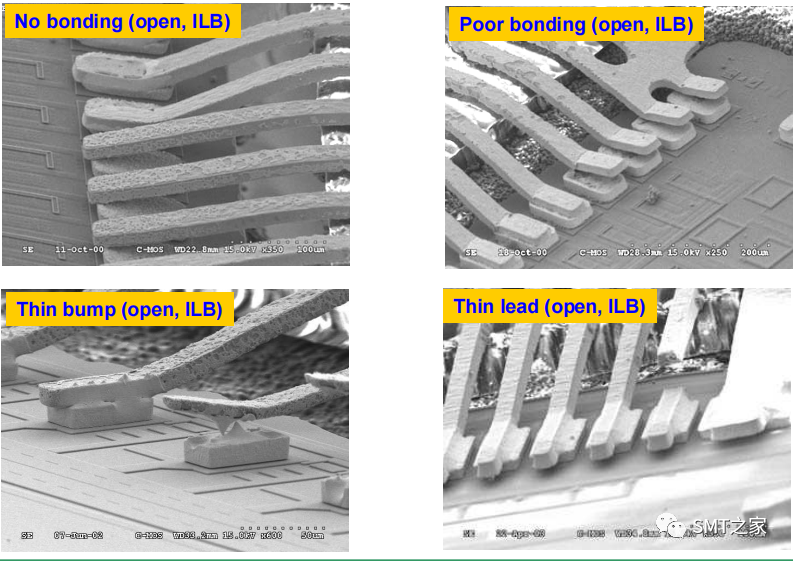

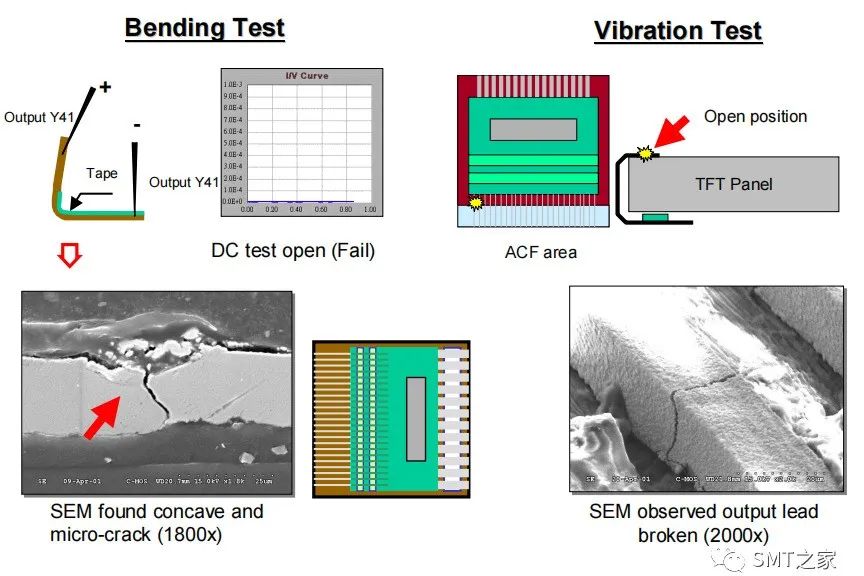

Open Failure

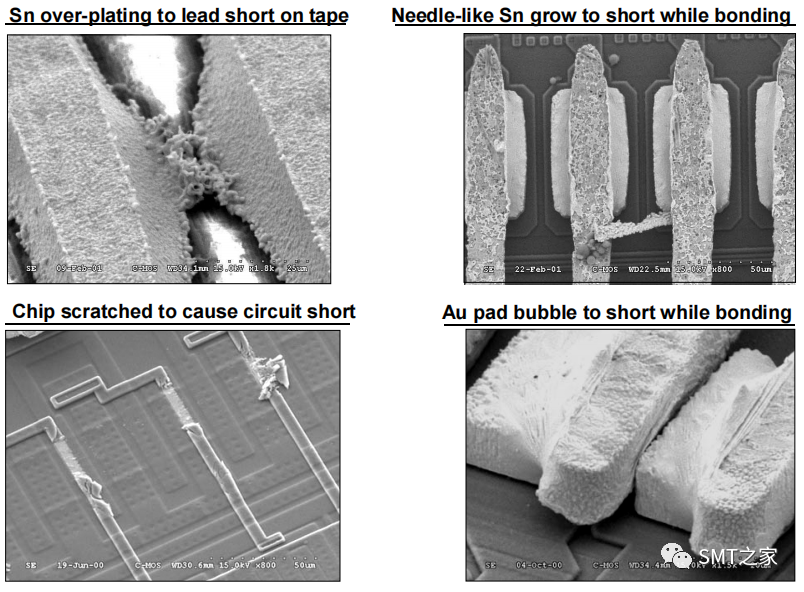

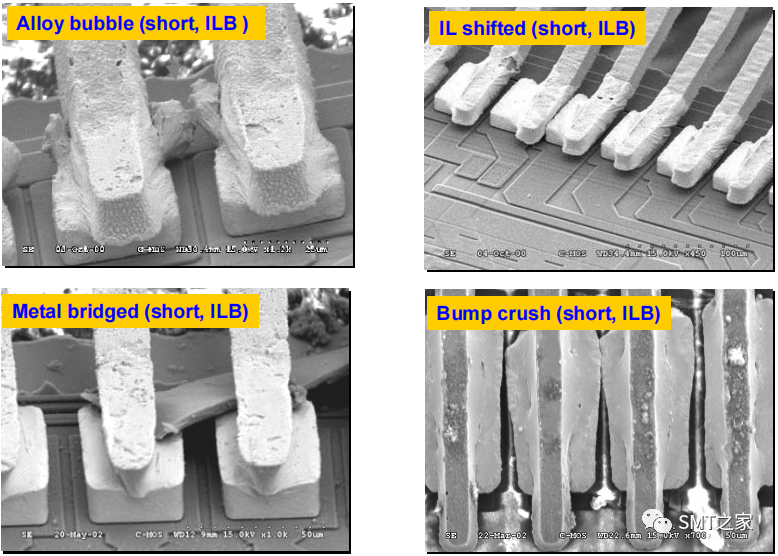

Short Failure

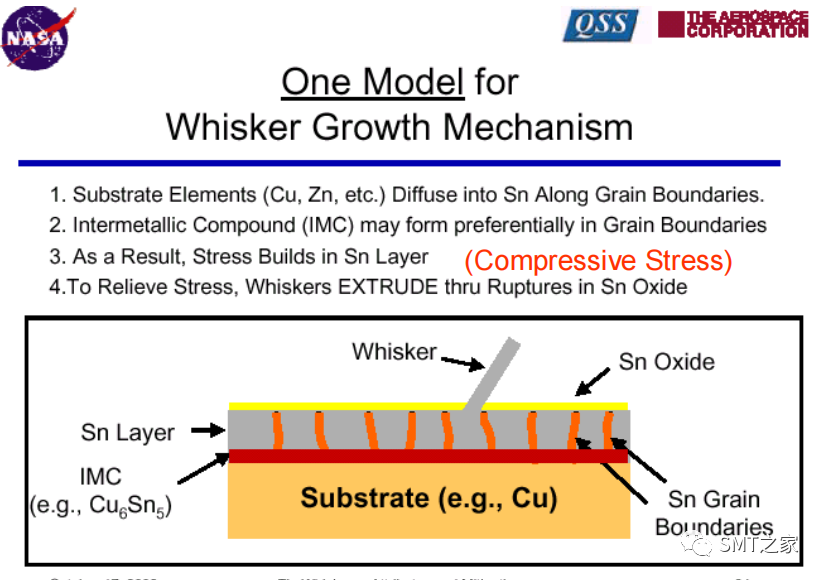

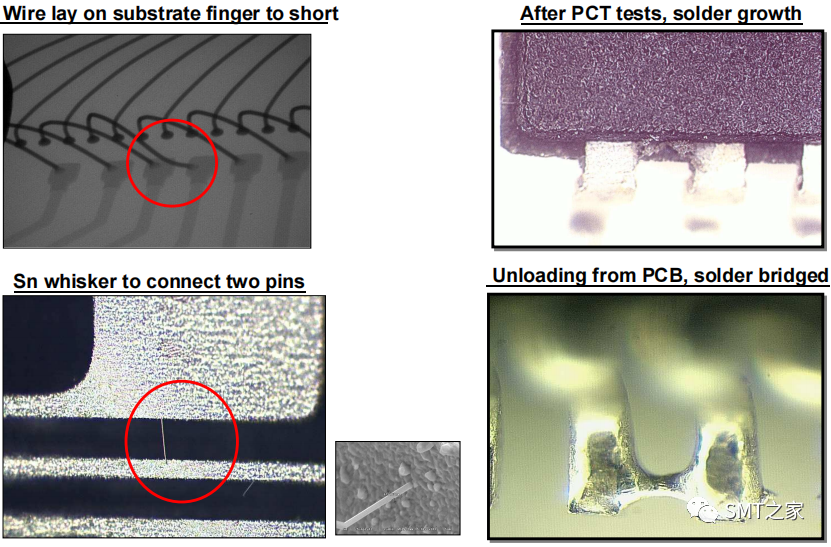

Short Failure (Tin Whisker)

Short Failure

Leakage Failure

Function Failure

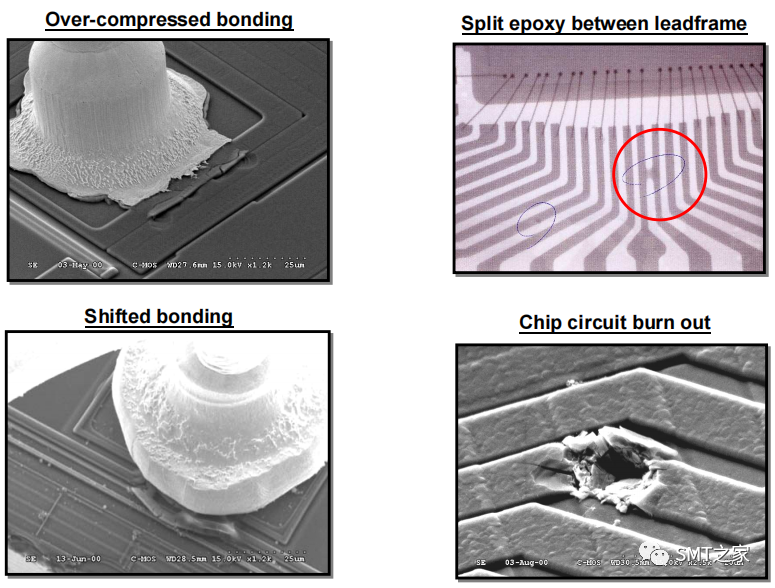

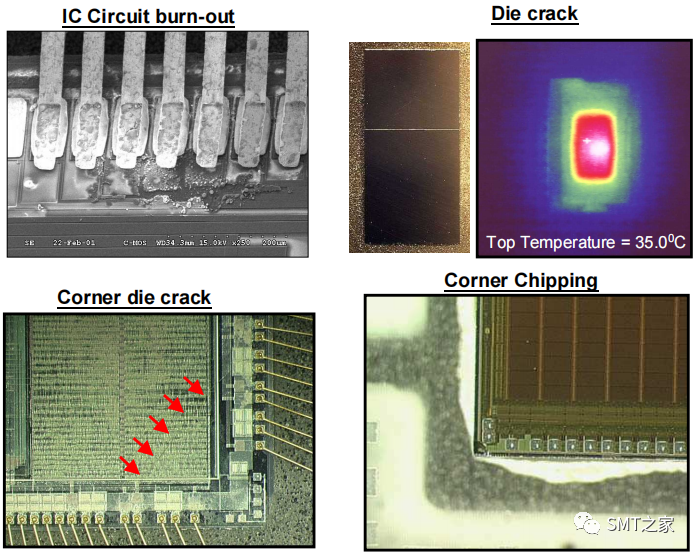

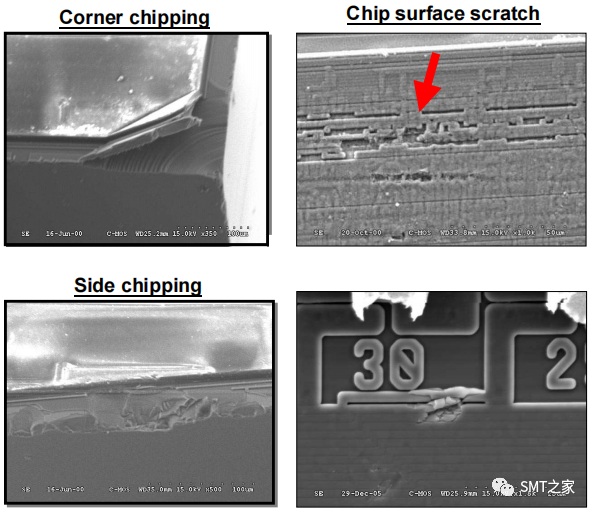

Assembled Related – Machine/Man Damaged

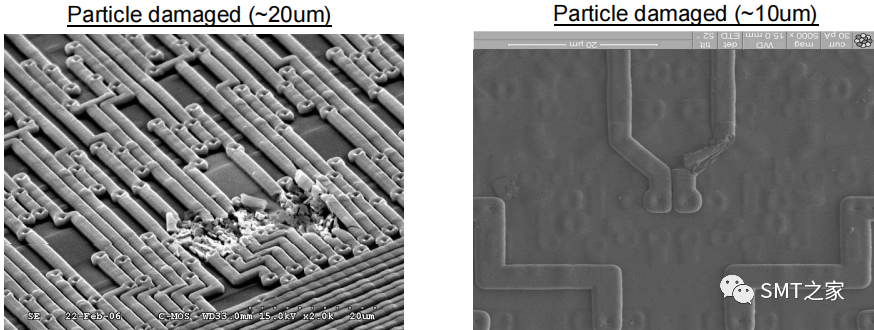

Assembled Related – Environment (Particle Damaged)

ESD Cases of Driver ICs

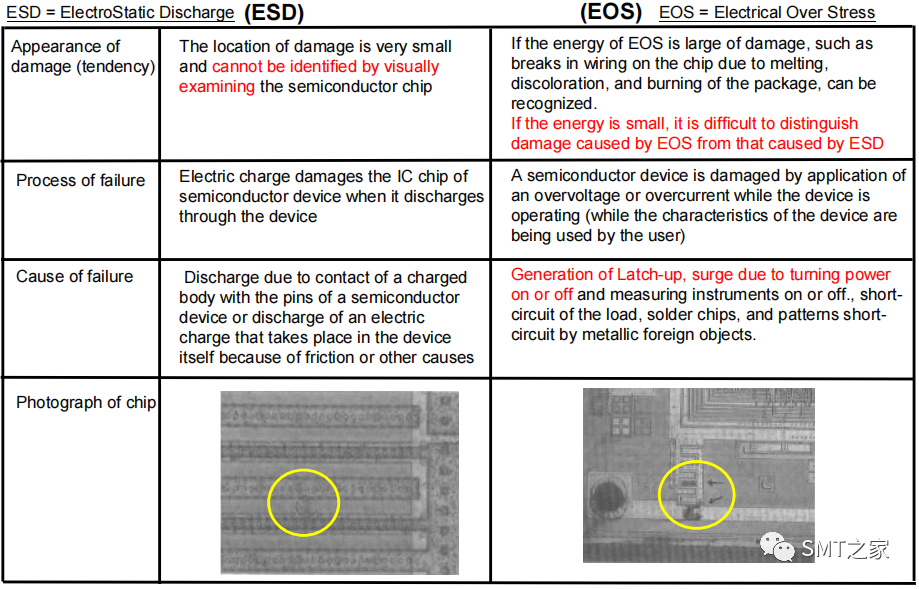

Difference between ESD and EOS

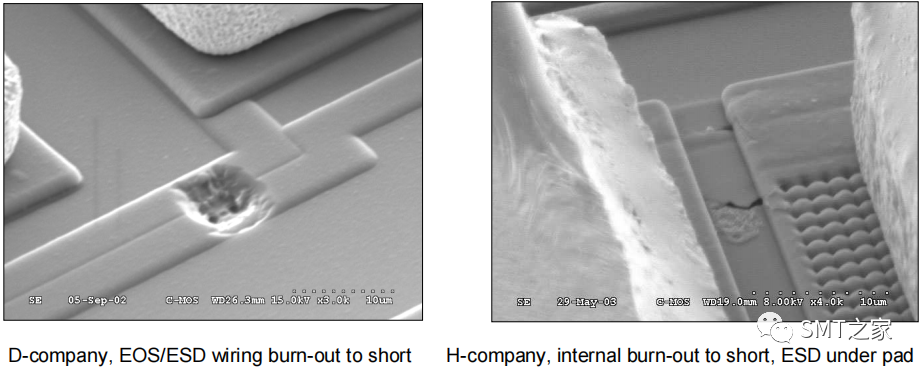

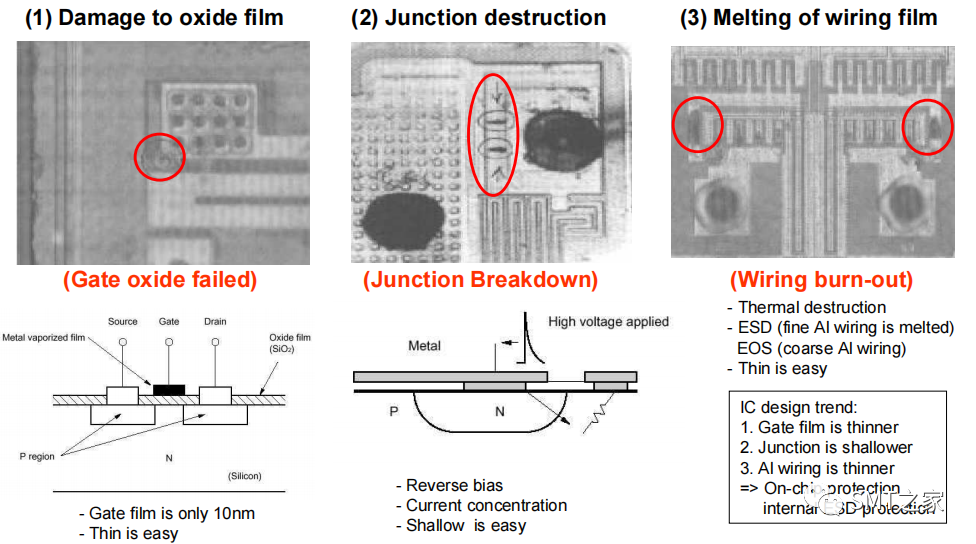

Major Mode of Damages by ESD
