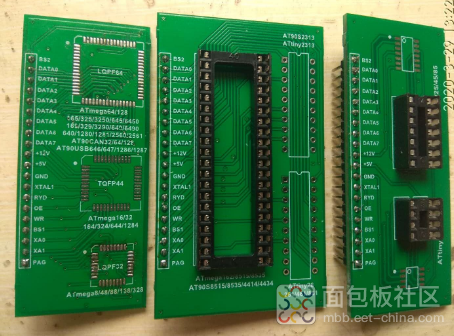

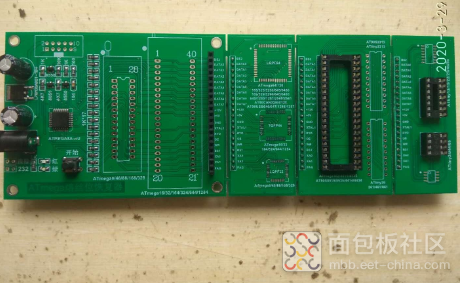

春节期间受假期影响 不上班宅在家里   断断续续历时半月出了搜索全网资料  画了套板子 背面都标注了引脚定义只要一样就可以上  感谢网友的无私奉献  打样回来很漂亮  主板加插接板结构 有需要的联系有多余样板
焊上芯片，通上12V电源，按一下按复位按键，红灯闪一下，亮绿灯，解锁恢复成功，拆下芯片测试，解锁没成功，就亮红灯
能解锁的芯片列表
Full list below:
  • 1kB:
  • AT90s1200, Attiny11, Attiny12, Attiny13/A, Attiny15
  • 2kB:
  • Attiny2313/A, Attiny24/A, Attiny26, Attiny261/A, Attiny28, AT90s2333, Attiny22, Attiny25, AT90s2313, AT90s2323, AT90s2343
  • 4kB:
  • Atmega48, Atmega48P/A, Attiny461/A, Attiny43U, Attiny4313, Attiny44/A, Attiny48, AT90s4433, AT90s4414, AT90s4434, Attiny45
  • 8kB:
  • Atmega8515, Atmega8535, Atmega8, Atmega88, Atmega88P/A, AT90pwm1, AT90pwm2, AT90pwm2B, AT90pwm3, AT90pwm3B, AT90pwm81, AT90usb82, Attiny861/A, Attiny87, Attiny88, Attiny85, AT90s8515, AT90s8535
  • 16kB:
  • Atmega16/A, Atmega16U2, Atmega16U4, Atmega16M1, Atmega161, Atmega162, Atmega163, Atmega164, Atmega164P/A, Atmega165/P/A/PA, Atmega168, Atmega168P/A, Atmega169/P/A/PA, Attiny167, AT90pwm216, AT90pwm316, AT90usb162
  • 32kB:
  • Atmega32/A, Atmega32C1, Atmega323/A, Atmega32U2, Atmega32U4, Atmega32U6, Atmega32M1, Atmega324, Atmega324P/A, Atmega325, Atmega3250, Atmega325P, Atmega3250P, Atmega328, Atmega328P, Atmega329, Atmega3290, Atmega329P, Atmega3290P, AT90can32
  • 64kB:
  • Atmega64/A, Atmega64C1, Atmega64M1, Atmega649, Atmega6490, Atmega640, Atmega644, Atmega644P/A, Atmega645, Atmega6450, AT90usb646, AT90usb647, AT90can64
  • 128kB:
  • Atmega103, Atmega128/A, Atmega1280, Atmega1281, Atmega1284, Atmega1284P, AT90usb1286, AT90usb1287, AT90can128
  • 256kB:
  • Atmega2560, Atmega2561
    • 复制代码


    统一回复一下 这个版本据说是波兰大神写的    所列型号据大神所列都能解锁   我手头没有那么多型号没能一一实验   说实验型号有ATmega 8 8a 8L  48  64A 128A  32   6楼8楼所言我反驳一下 有些不能解锁是因为程序或者熔丝设置了禁止读的功能  用USB-ttl接到串口调试助手 波特率4800就看到信息了   这时要短接擦除端子方可 整个程序也擦除了    估计波兰大神是不想万一还要保留程序以防意外擦除。还有好多技巧有待慢慢研究
