FPGA设计的一个难点,就是设计技巧和规则的掌握,下面来看一个简单例子的实现过程,作为初级入门案例。
一、按键按下实现LED点亮
当LED引脚输出低电平时LED点亮,
(1)代码实现如下
- module test(clk,rst_n,led);
- input clk ;
- input rst_n ;
- output reg led ;
- always @ ( posedge clk or negedge rst_n)
- begin
- if(!rst_n)
- begin
- led<=0;
- end
- else
- begin
- led<=1;
- end
- end
- endmodule
(2)基础语法要点:
在always里面被赋值必须是reg变量。
凡是在时序电路中被赋值的变量 必须是非阻塞赋值。always @ ( posedge clk or negedge rst_n)
凡是在组合电路中被赋值的变量 必须是阻塞赋值always @ ( *)

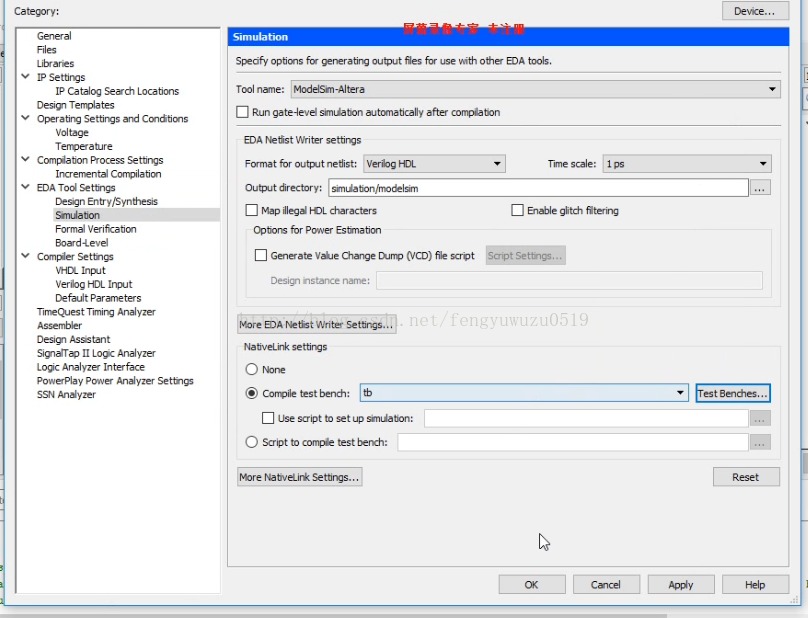

(3)Modelsim仿真测试文件。- `timescale 1 ps/ 1 ps
- module test_tb();
- reg clk;
- reg rst_n;
- wire led;
- test i1 (
- .clk(clk),
- .led(led),
- .rst_n(rst_n)
- );
- initial
- begin
- $display("Running testbench");
- clk=0;
- rst_n=0;
- #1000 rst_n=1;
- end
- always #10 clk=~clk;
- endmodule
- 输入都改为reg(系统产生)
- 输出都改为wire:连线(系统产生)
- 实例化模块并连接导线。(系统产生)
- initial中初始化变量。(自己修改)
- always产生时钟。(自己修改)

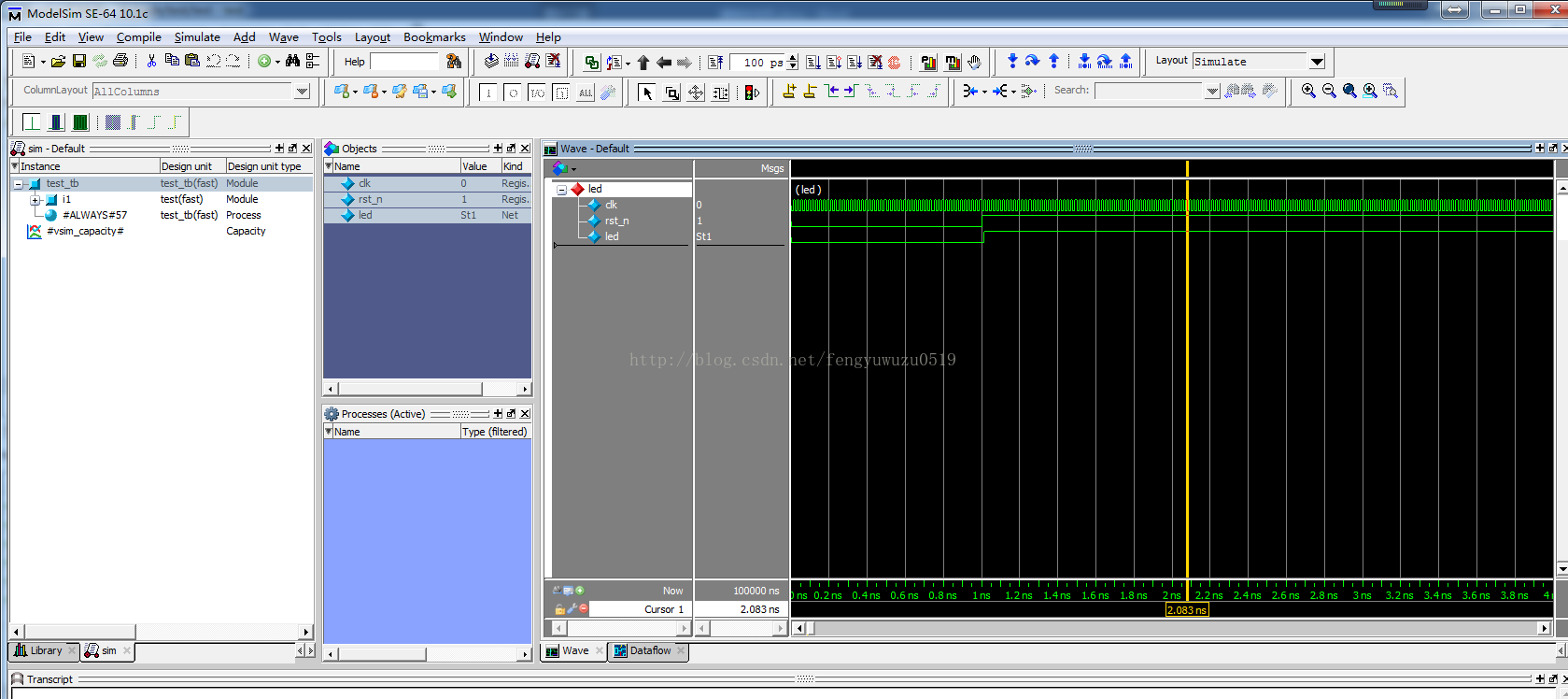

(4)Modelsim仿真
仿真中常用命令:
do wave.do
restart
run 0.1ms
(5)如果点亮四个LED呢?
改变led输出变量的位宽:
- module test(clk,rst_n,led);
- input clk ;
- input rst_n ;
- output reg [3:0]]led ;
- always @ ( posedge clk or negedge rst_n)
- begin
- if(!rst_n)
- begin
- led<=4'b1111;
- end
- else
- begin
- led<=4'b0000;
- end
- end
- endmodule
同样改变测试文件位宽
wire [3:0] led ;

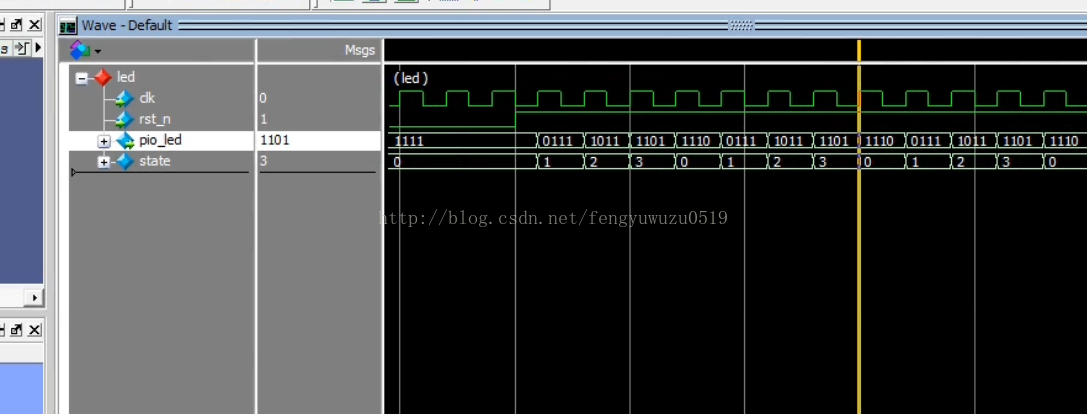

二、状态机设计实现流水灯
(1)模块代码
- module test(clk,rst_n,led);
- input clk ;
- input rst_n ;
- output reg [3:0]led ;
- reg[1:0] state;
- always @ ( posedge clk or negedge rst_n)
- begin
- if(!rst_n)
- begin
- led<=4'b1111;
- state<=0;
- end
- else
- begin
- case(state)
- 0:begin
- led<=4'b0111;
- state<=1;
- end
- 1:begin
- led<=4'b1011;
- state<=2;
- end
- 2:begin
- led<=4'b1101;
- state<=3;
- end
- 3:begin
- led<=4'b1110;
- state<=0;
- end
- default:
- state<=0;
- endcase
- end
- end
- endmodule
(3)设计要点
注意state变量的赋初值。
(4)频率反转太快、看不出LED效果。
改善方法1:
状态机中增加计数器。
- module test(clk,rst_n,led);
- input clk ;
- input rst_n ;
- output reg [3:0]led ;
- reg[1:0] state;
- reg [3:0] counter;
- always @ ( posedge clk or negedge rst_n)
- begin
- if(!rst_n)
- begin
- led<=4'b1111;
- state<=0;
- counter<=0;
- end
- else
- begin
- case(state)
- 0:begin
- led<=4'b0111;
- if(counter<12)
- counter<=counter+1;
- else
- begin
- counter<=0;
- state<=1;
- end
- end
- 1:begin
- led<=4'b1011;
- if(counter<12)
- counter<=counter+1;
- else
- begin
- counter<=0;
- state<=2;
- end
- end
- 2:begin
- led<=4'b1101;
- if(counter<12)
- counter<=counter+1;
- else
- begin
- counter<=0;
- state<=3;
- end
- end
- 3:begin
- led<=4'b1110;
- if(counter<12)
- counter<=counter+1;
- else
- begin
- counter<=0;
- state<=0;
- end
- end
- default:
- state<=0;
- endcase
- end
- end
- endmodule
同一变量不能同时在两个always块内复制,如分频和状态机的两个always块,复位时复位什么变量由本块内用到的变量决定。
基础十分重要,是FPGA设计的前提。通过以上学习我们学会了状态机 计数器 时钟分频电路的设计。
以上代码中包含了分频,LED状态机等多个功能模块。

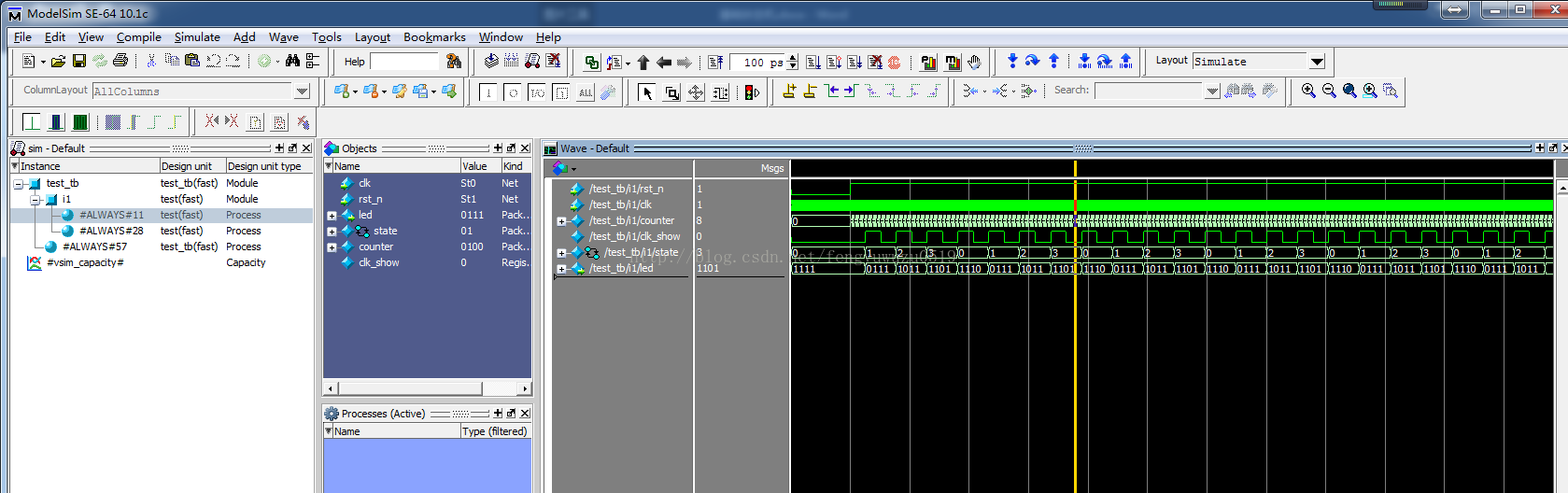

- module test(clk,rst_n,led);
- input clk ;
- input rst_n ;
- output reg [3:0]led ;
- reg[1:0] state;
- reg [3:0] counter;
- reg clk_show;
- always @ ( posedge clk or negedge rst_n)
- begin
- if(!rst_n)
- begin
- clk_show<=0;
- counter<=0;
- end
- else
- if(counter<12)
- counter<=counter+1;
- else
- begin
- counter<=0;
- clk_show=~clk_show;
- end
- end
- always @ ( posedge clk_show or negedge rst_n)
- begin
- if(!rst_n)
- begin
- led<=4'b1111;
- state<=0;
- end
- else
- begin
- case(state)
- 0:begin
- led<=4'b0111;
- state<=1;
- end
- 1:begin
- led<=4'b1011;
- state<=2;
- end
- 2:begin
- led<=4'b1101;
- state<=3;
- end
- 3:begin
- led<=4'b1110;
- state<=0;
- end
- default:
- state<=0;
- endcase
- end
- end
- endmodule
- 测试:
- `timescale 1 ps/ 1 ps
- module test_tb();
- // constants
- // general purpose registers
- // test vector input registers
- reg clk;
- reg rst_n;
- // wires
- wire [3:0]led;
- // assign statements (if any)
- test i1 (
- // port map - connection between master ports and signals/registers
- .clk(clk),
- .led(led),
- .rst_n(rst_n)
- );
- initial
- begin
- // code that executes only once
- // insert code here --> begin
- // --> end
- $display("Running testbench");
- clk=0;
- rst_n=0;
- #1000 rst_n=1;
- end
- always #10 clk=~clk;
- endmodule
